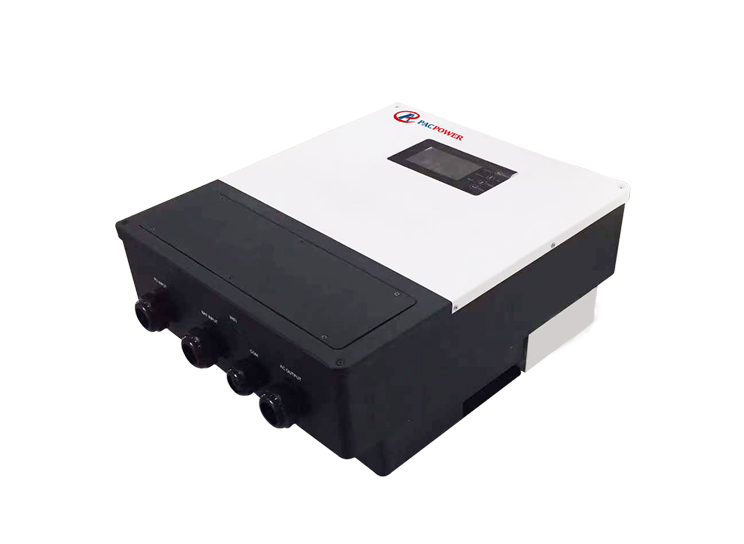

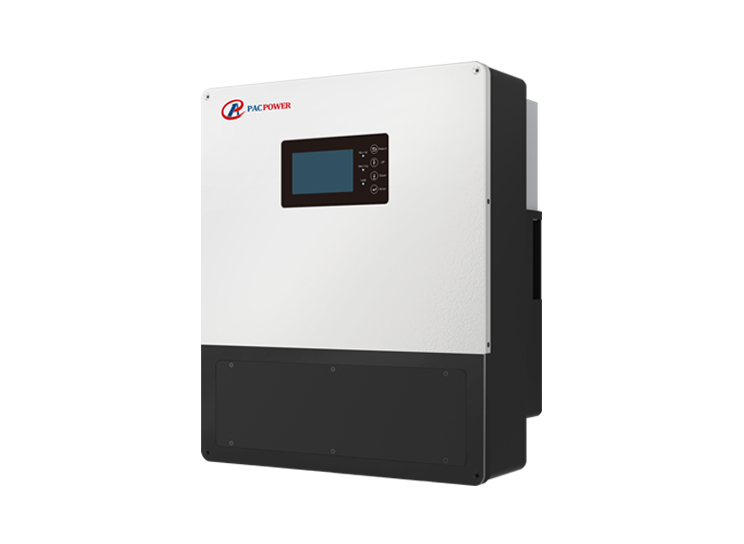

  • Mppt Pure Sine Wave 5KW Hybrid Solar Inverter for off-grid system 220Vac/230Vac/240Vac

    CATEGORY AND TAGS:
    Solar Inverter , , , , ,

    BP series off grid solar inverter is integrated with a MPPT solar charge controller, a high frequency pure sine inverter and a UPS function module in one machine. This inverter can work with or without batteries.

    BP 5KW can be wired in parallel to increase the output capacity. With monitoring accessory, the whole system status can be monitored anytime anywhere.

    enquiry
    • Specifications
    • Main Features of BP Series Inverter
    • Inverter working diagram
    • Schematic diagram of parallel connection

    Mppt Pure Sine Wave 5000VA/5KW Hybrid Solar Inverter for off-grid system 220Vac/230Vac/240Vac

    Item Specificaton
    Model 3.5KW 5KW
    Rated Power 3500VA/3500W 5000VA/5000W
    System DC voltage 48VDC 48VDC
    Parallel Option Yes, up to 6 units Yes, up to 6 units
    Monitoring Option WiFi or GPRS(Optional) WiFi or GPRS(Optional)
    Inverter Output
    AC Voltage 220V-230V-240Vac 220V-230V-240Vac
    Surge Power 7000VA 10000VA
    Peak Efficiency 93% 93%
    Transfer Time 10ms(For personal computers); 20ms(For home appliances)
    Waveform Pure Sine Wave Pure Sine Wave
    Solar Charger & AC Charger
    Max. PV Array Open Circuit Voltage 450Vdc 450Vdc
    Max. PV Array Power 4500W 6000W
    Operating Voltage MPPT Range 120~430Vdc 120~430Vdc
    Battery Overcharge Protection 60Vdc 60Vdc
    Max. Solar Charge Current 80A 100A
    Max. AC Charge Current 60A 80A
    Max. Charge Current 80A 100A
    Physical
    Dimension 470×320×135mm 470×320×135mm
    Net Weight 11.5kg 12kg
    Communication Interface USB/CAN/RS485 USB/CAN/RS485
    Environment
    Humidity 5% to 95% Relative Humidity(non-condensing)
    Operating Temperature 0℃~50℃
    Storage -15℃~60℃
    • Rated power 3.5KW / 5KW
    • Built-in MPPT, MPPT voltage range 120V~430Vdc
    • Pure sine wave AC output
    • Solar and utility joint to power the loads
    • With the ability to work with or without battery
    • Parallel operation up to 6 units
    • WIFI/ GPRS remote monitoring
    • CAN/ RS485 communication for battery BMS
