Worldwide battery provider

Cylindrical Lithium ion Battery

» Cylindrical Lithium ion Battery

  • 18650 3s5p ODM lithium ion batteries 10.8V 16Ah with SMBus for medical equipment

    CATEGORY AND TAGS:
    Cylindrical Lithium ion Battery, Medical Equipment Battery

    10.8V 16Ah lithium ion Battery Pack, widely use for
    *Electric motorcycle,
    *UPS/ power back up,
    *LED light,
    *golf cart,
    *electric bike,
    *Electric scooter,
    *Electric golf trolley,
    *Electric wheel chair.





    enquiry
    • Specifications
    • Lithium Battery Advantages
    • One-Stop Services
    • Lithium Battery Applications

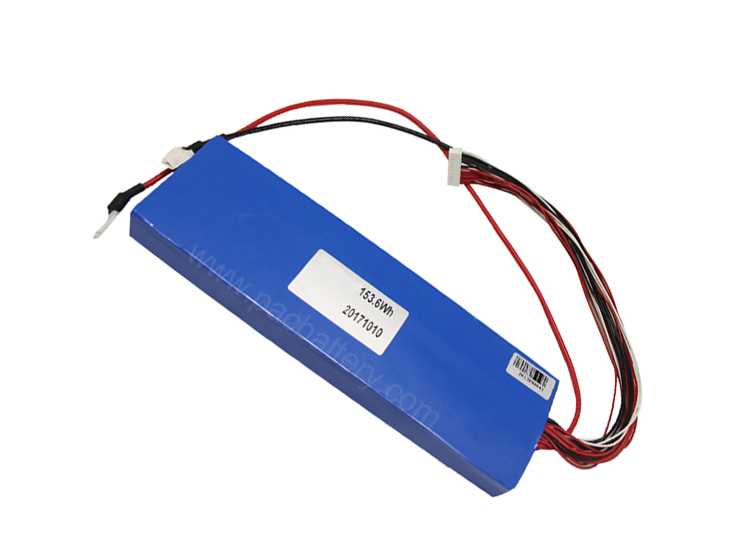

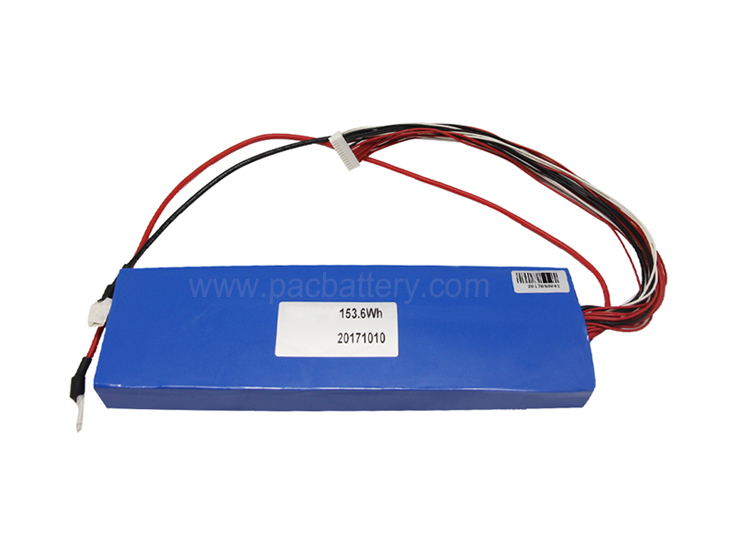

    18650 3s5p ODM lithium ion batteries 10.8V 16Ah with SMBus for medical equipment

    No.
    Item
    General Parameter
    Remark
    1.1
    Description
    18650 3s5p ODM lithium ion batteries 10.8V 16Ah with SMBus for medical equipment
    1.2
    Cell Model
    18650-3S5P
    1.3
    Typical Capacity
    16Ah
    1.4
    Typical Voltage
    10.8V
    1.5
    End of Charge Voltage
    4.2V
    1.6
    Charge Current
    0.2C
    1.7
    Charging time
    5-6 Hours
    1.8
    Over-Charge Voltage Protection cell
    4.2V
    1.9
    Max continuous charge current
    8A
    2.0
    Maximum Continuous Discharging Current
    16A
    2.1
    Over-discharge Voltage Protection cell
    2.5V
    2.2
    Over-Current Discharge Protection
    50A
    2.3
    Short circuit protection
    With protection
    2.4
    Dimension
    280*70*23mm
    2.5
    Weight
    about 0.8kgs
    2.6
    Operation Temperature Range
    Charge: 0~45°C,Discharge: -20~60°C






    • Long life cycle, large capacity and good shock resistance

    • Low self-discharge and good discharge performance at low temperature
    • Strong charging acceptance and quick-charging capability
    • Strong over-discharge resistance and charge retention
    • Maintenance-free and no acid or water for maintenance in usage
    • Excellent large current discharge performance, and have obvious advantages in startup and climbing
    • High temperature performance
    • Environmental friendly
    • Lighter weight smaller size
    • Most safe no explosion no fire


    • Lithium polymer battery cell manufacturing, with 1000+ existing cell models.

    • Cylindrical Lithium ion battery cell manufacturing, with model of 18650, 26650, 14500, 32650, 38120.
    • Battery assembly with International branded 18650 cells, like Samsung, LG, • Panasonic, Sony, etc..
    • Battery management system (BMS/PCM) design, production is done in-house.
    • Battery Plastic housing tooling, injection is done in-house

    1.Light: headlamp, emergency light, solar flashlight, searchlight, lanten, bicycle light, LED light, military
    flashlight, high-end flashlight, high power flashlight, bright flashlight.
    2.Outdoor sports products: camping light, mountain bike light, solar emergency light, self-defense flashlight,
    3.Consumer electronics: MPS, Tablet PC. laptop, Bluetooth earphone, power bank, portable DVD player,
    speaker, microphone, sound equipment, audio, Digital camera
    4.Home appliances products: electric mop, electric vacuum cleaner, electric children toys, electric shoes,
    electric blanket.
    5.Medical devices
    6.Instruments and meters: water meter, gas meter.
    7.Electric transportation vehicles: electric bike, electric car, e-scooter, electric motor, electric trolley, electric cart.
    8.Power tools: electric drill, mower
    9.UPS, backup energy, storage energy.

    We warmly welcome OEM design inquiry! We could make customized battery pack specially for you!
