Worldwide battery provider

Consumer Electronic Products Battery

» Consumer Electronic Products Battery

  • Cylindrical 3.7v li ion battery 14250 280mAh with PCM and cap

    CATEGORY AND TAGS:
    Consumer Electronic Products Battery, Cylindrical Lithium ion Battery

    Cylindrical li ion battery cell, size and capacity can be customized.
    We have more than 1000 models for your choosing.





    enquiry
    • Specifications
    • Lithium Battery Advantages
    • One-Stop Services
    • Lithium Battery Applications

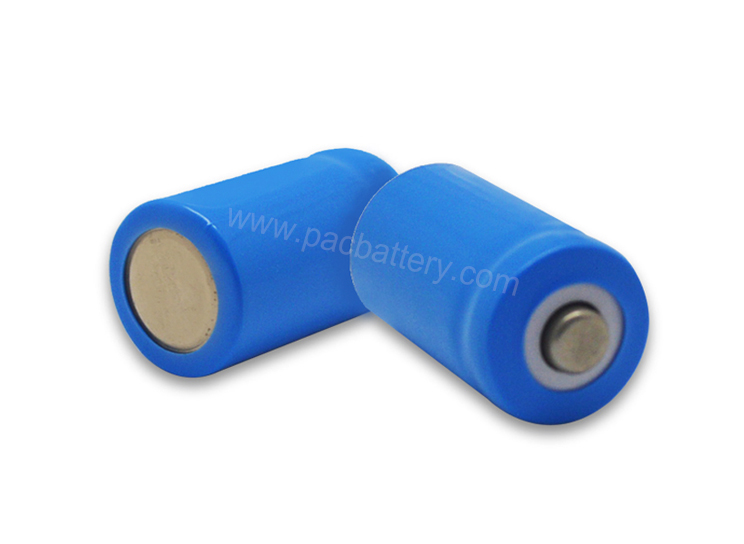

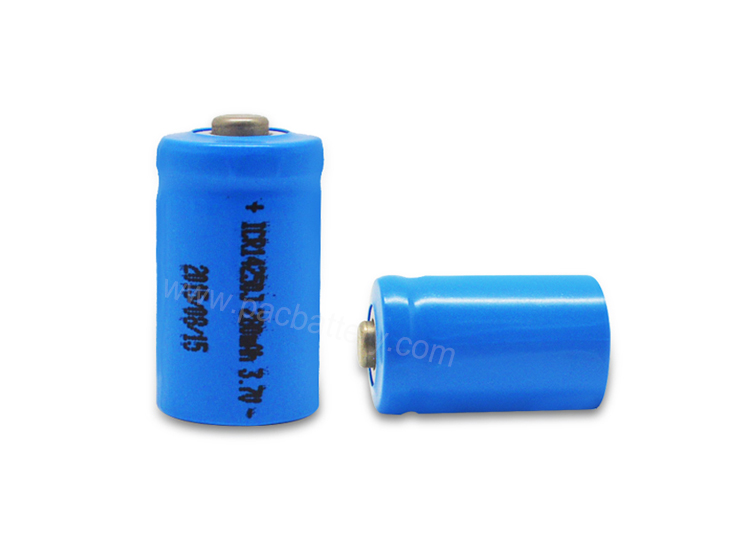

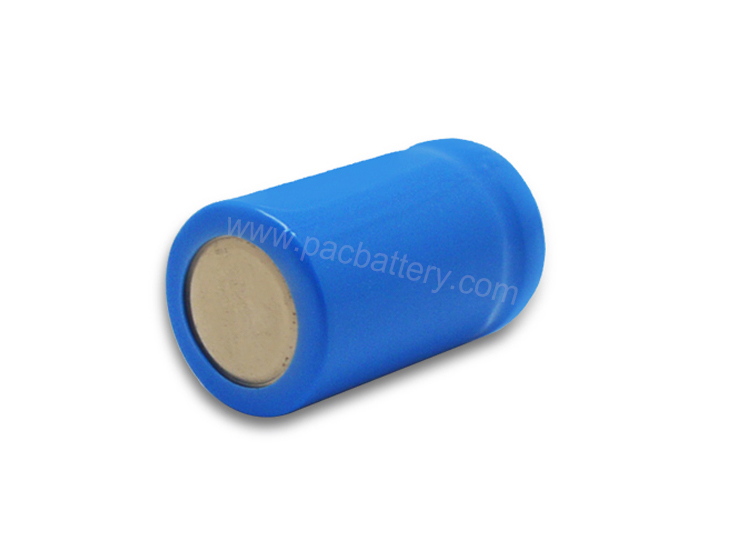

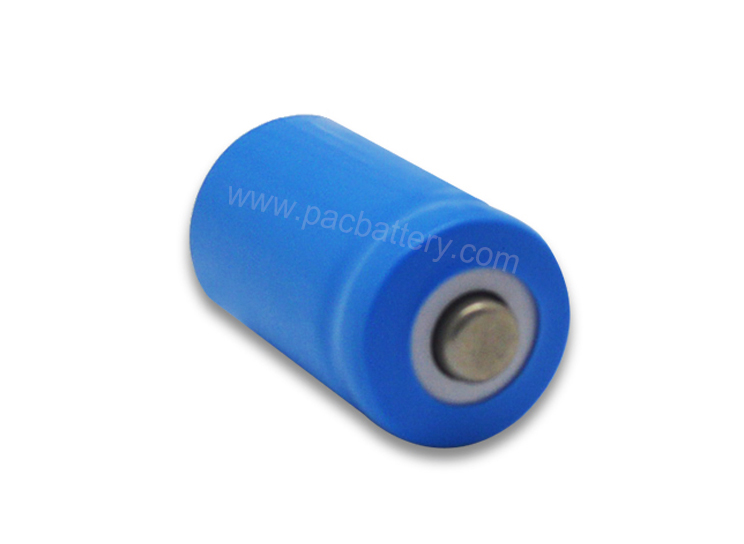

    Cylindrical 3.7v li ion battery 14250 280mAh with PCM and cap

    No.
    Item
    General Parameter
    Remark
    1.1
    Description
    Cylindrical 3.7v li ion battery 14250 280mAh with PCM and cap
    1.2
    Cell Model
    14250
    1.3
    Typical Capacity
    280mAh
    1.4
    Typical Voltage
    3.7V
    1.5
    End of Charge Voltage
    4.2V
    1.6
    Charge Current
    0.2C
    1.7
    Charging time
    5-6 Hours
    1.8
    End discharge Voltage
    3.0V
    1.9
    Max continuous charge current
    1C
    2.0
    Maximum Continuous Discharging Current
    2C
    2.1
    Over-discharge Voltage Protection cell
    3.0V
    2.2
    Over-Current Discharge Protection
    2A
    2.3
    Short circuit protection
    With protection
    2.4
    Dimension
    14*25mm
    2.5
    Weight
    5g
    2.6
    Operation Temperature Range
    Charge 0~45 C, Discharge -20~60 C






    • Long life cycle, large capacity and good shock resistance

    • Low self-discharge and good discharge performance at low temperature
    • Strong charging acceptance and quick-charging capability
    • Strong over-discharge resistance and charge retention
    • Maintenance-free and no acid or water for maintenance in usage
    • Excellent large current discharge performance, and have obvious advantages in startup and climbing
    • High temperature performance
    • Environmental friendly
    • Lighter weight smaller size
    • Most safe no explosion no fire


    • Lithium polymer battery cell manufacturing, with 1000+ existing cell models.

    • Cylindrical Lithium ion battery cell manufacturing, with model of 18650, 26650, 14500, 32650, 38120.
    • Battery assembly with International branded 18650 cells, like Samsung, LG, • Panasonic, Sony, etc..
    • Battery management system (BMS/PCM) design, production is done in-house.
    • Battery Plastic housing tooling, injection is done in-house

    1.Light: headlamp, emergency light, solar flashlight, searchlight, lanten, bicycle light, LED light, military
    flashlight, high-end flashlight, high power flashlight, bright flashlight.
    2.Outdoor sports products: camping light, mountain bike light, solar emergency light, self-defense flashlight,
    3.Consumer electronics: MPS, Tablet PC. laptop, Bluetooth earphone, power bank, portable DVD player,
    speaker, microphone, sound equipment, audio, Digital camera
    4.Home appliances products: electric mop, electric vacuum cleaner, electric children toys, electric shoes,
    electric blanket.
    5.Medical devices
    6.Instruments and meters: water meter, gas meter.
    7.Electric transportation vehicles: electric bike, electric car, e-scooter, electric motor, electric trolley, electric cart.
    8.Power tools: electric drill, mower
    9.UPS, backup energy, storage energy.

    We warmly welcome OEM design inquiry! We could make customized battery pack specially for you!
