Worldwide battery provider

Lithium Ion Battery

» Lithium Ion Battery

  • High capacity 4S4P 18650 14.8V 13.6Ah lithium ion DV battery

    CATEGORY AND TAGS:
    Lithium Ion Battery


    High capacity 4S4P 18650 14.8V 13.6Ah lithium ion DV battery.

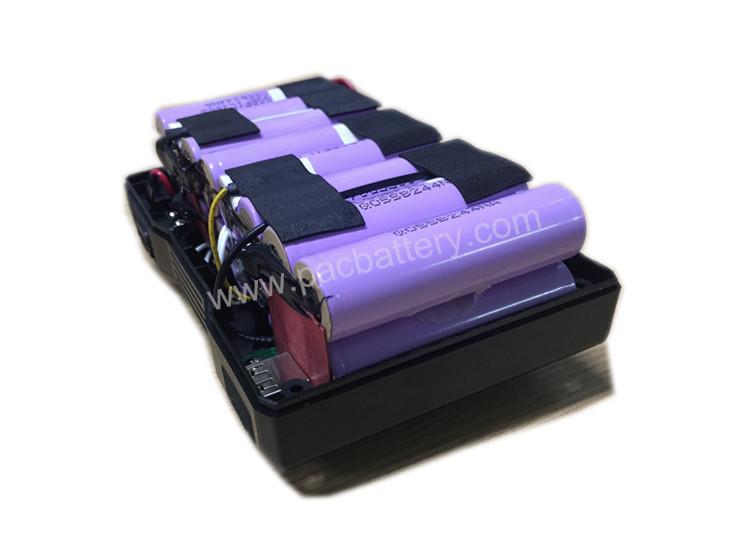

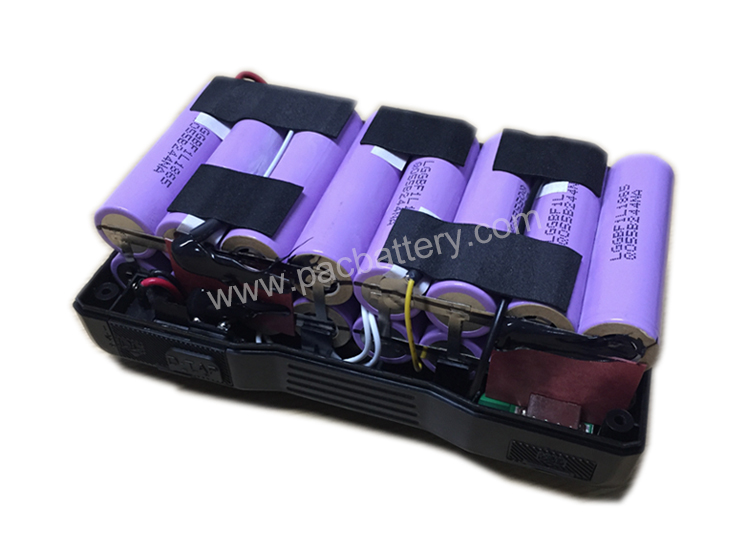

    14.8V Camera Battery, using LG18650 3400mAh battery cell, 4S4P assembly, widely be used in camera and medical cart.

    enquiry
    • Specifications
    • Lithium Battery Advantages
    • One-Stop Services
    • Lithium Battery Applications


    High capacity 4S4P 18650 14.8V 13.6Ah lithium ion DV battery, made of LG 3400mAh cells.



    No.
    Item
    General Parameter
    Remark
    1.1
    Description
    4S4P 14.8V 14Ah 200Wh lithium ion Rechargeable Camera Battery
    4S4P Assembly
    1.2
    Cell Model
    18650

    1.3
    Typical Capacity
    13600mAh

    1.4
    Typical Voltage
    14.8V

    1.5
    End of Charge Voltage
    16.8V

    1.6
    Charge Current
    0.5C

    1.7
    Charging time
    2-3 Hours

    1.8
    End discharge Voltage
    10V

    1.9
    Max continuous charge current
    4A
    USB 2.1A, D-tap 4A
    2.0
    Maximum Continuous Discharging Current
    10A

    2.1
    Over-discharge Voltage Protection cell
    2.5V

    2.2
    Over-Current Discharge Protection
    13-16A

    2.3
    Short circuit protection
    With protection

    2.4
    Dimension
    96*49*152mm

    2.5
    Weight
    895g

    2.6
    Operation Temperature Range
    Charge 0~45 C, Discharge -20~60 C



    1.Long life cycle, large capacity and good shock resistance

    2.Low self-discharge and good discharge performance at low temperature
    3.Strong charging acceptance and quick-charging capability
    4.Strong over-discharge resistance and charge retention
    5.Maintenance-free and no acid or water for maintenance in usage
    6.Excellent large current discharge performance, and have obvious advantages in startup and climbing
    7. High temperature performance
    8. Environmental friendly
    9. Lighter weight smaller size
    10.Most safe no explosion no fire


    Lithium polymer battery cell manufacturing, with 1000+ existing cell models.

    Cylindrical Lithium ion battery cell manufacturing, with model of 18650, 26650, 14500, 32650, 38120.
    Battery assembly with International branded 18650 cells, like Samsung, LG, Panasonic, Sony, etc..
    Battery management system (BMS/PCM) design, production is done in-house.
    Battery Plastic housing tooling, injection is done in-house


    1.Light: headlamp, emergency light, solar flashlight, searchlight, lanten, bicycle light, LED light, military

    flashlight, high-end flashlight, high power flashlight, bright flashlight.
    2.Outdoor sports products: camping light, mountain bike light, solar emergency light, self-defense flashlight,
    3.Consumer electronics: MPS, Tablet PC. laptop, Bluetooth earphone, power bank, portable DVD player,
    speaker, microphone, sound equipment, audio, Digital camera
    4.Home appliances products: electric mop, electric vacuum cleaner, electric children toys, electric shoes,
    electric blanket.
    5.Medical devices
    6.Instruments and meters: water meter, gas meter.
    7.Electric transportation vehicles: electric bike, electric car, e-scooter, electric motor, electric trolley, electric cart.
    8.Power tools: electric drill, mower
    9.UPS, backup energy, storage energy.

    We warmly welcome OEM design inquiry! We could make customized battery pack specially for you!
