  • 4S3P 14.4V 15Ah 26650 lithium ion battery pack for portable UPS

    CATEGORY AND TAGS:
    Lithium Ion Battery

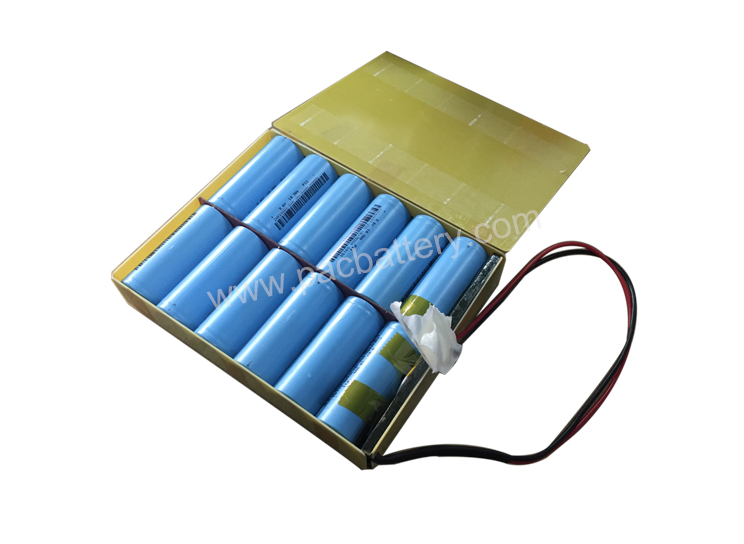

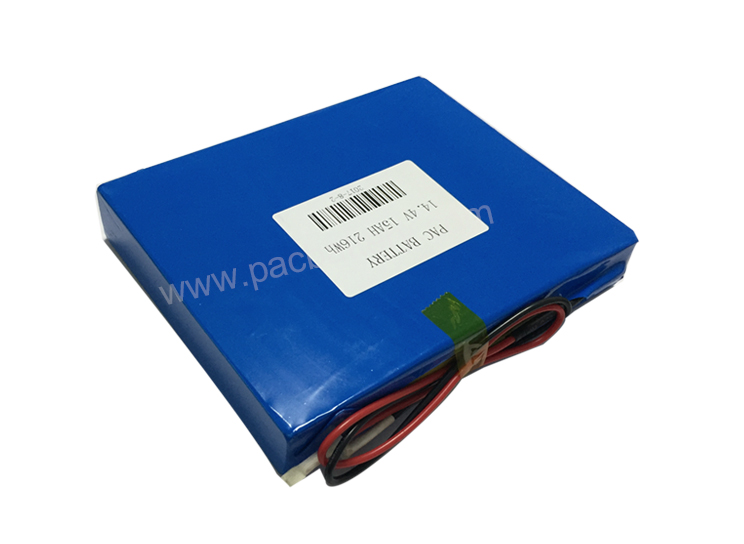

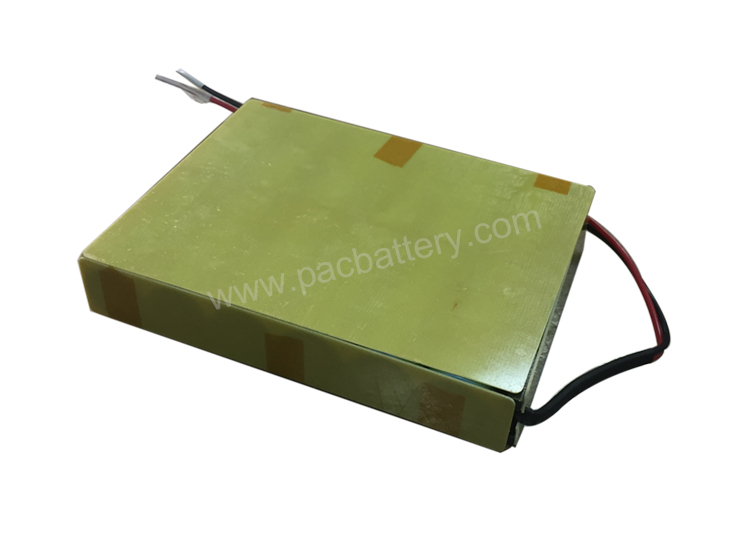

    4S3P 14.4V 15Ah 26650 lithium ion battery pack for portable UPS



    12V 15Ah Li-ion Battery Pack, using 26650 battery cell, 4S3P assembly, widely use for solar street light, UPS/ power back up supply for LED light, golf cart, e-bike.

    enquiry
    • Specifications

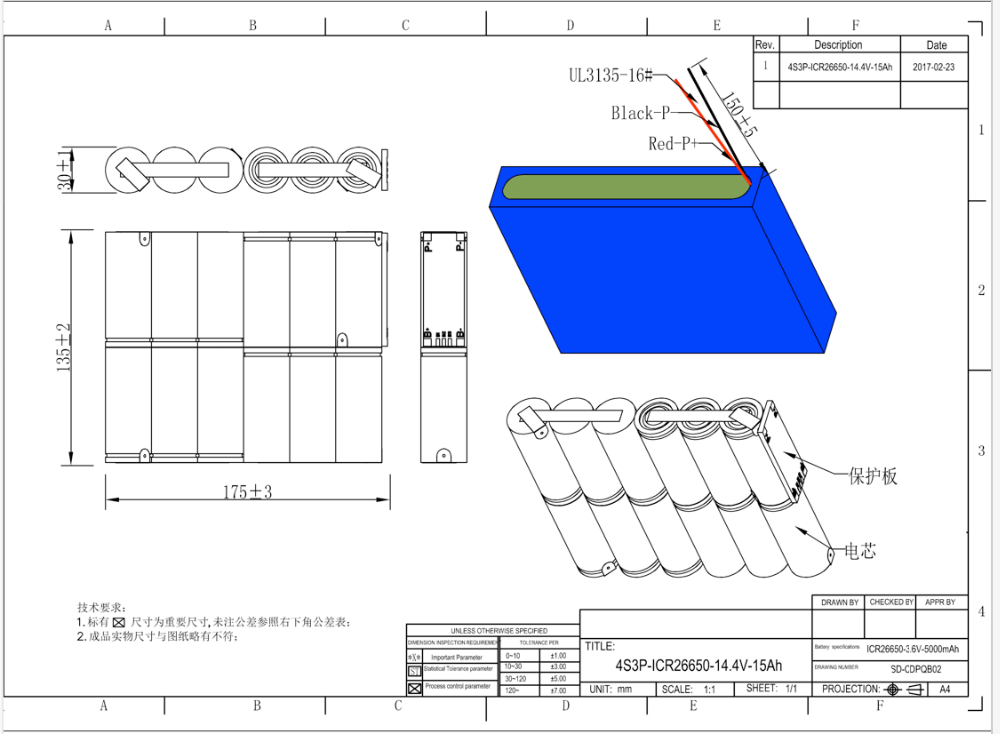

    • Battery Assembly Drawing
    • One-Stop Services
    • Lithium Battery Applications

    4S3P 14.4V 15Ah 26650 lithium ion battery pack for portable UPS

    No.
    Item
    General Parameter
    Remark
    1.1
    Description
    12V 15Ah battery pack
    4S3P pack
    1.2
    Cell Model
    26650 3.6V 5000mAh

    1.3
    Typical Capacity
    15Ah

    1.4
    Typical Voltage
    14.4V

    1.5
    End of Charge Voltage
    16.8V

    1.6
    Charge Current
    0.2C

    1.7
    Charging time
    5-6 Hours

    1.8
    Over-Charge Voltage Protection cell
    4.25V

    1.9
    Max continuous charge current
    9A

    2.0
    Maximum Continuous Discharging Current
    9A

    2.1
    Over-discharge Voltage Protection cell
    2.7V

    2.2
    Over-Current Discharge Protection
    40 10A

    2.3
    Short circuit protection
    With protection

    2.4
    Dimension
    175*135*30mm (L*W*T)

    2.5
    Weight
    1.5kg

    2.6
    Operation Temperature Range
    Charge 0~45 C, Discharge -20~60 C





    Lithium polymer battery cell manufacturing, with 1000+ existing cell models.

    Cylindrical Lithium ion battery cell manufacturing, with model of 18650, 26650, 14500, 32650, 38120.
    Battery assembly with International branded 18650 cells, like Samsung, LG, Panasonic, Sony, etc..
    Battery management system (BMS/PCM) design, production is done in-house.
    Battery Plastic housing tooling, injection is done in-house.


    1.Light: headlamp, emergency light, solar flashlight, searchlight, lanten, bicycle light, LED light, military

    flashlight, high-end flashlight, high power flashlight, bright flashlight.
    2.Outdoor sports products: camping light, mountain bike light, solar emergency light, self-defense flashlight,
    3.Consumer electronics: MPS, Tablet PC. laptop, Bluetooth earphone, power bank, portable DVD player,
    speaker, microphone, sound equipment, audio, Digital camera
    4.Home appliances products: electric mop, electric vacuum cleaner, electric children toys, electric shoes,
    electric blanket.
    5.Medical devices
    6.Instruments and meters: water meter, gas meter.
    7.Electric transportation vehicles: electric bike, electric car, e-scooter, electric motor, electric trolley, electric cart.
    8.Power tools: electric drill, mower
    9.UPS, backup energy, storage energy.

    We warmly welcome OEM design inquiry! We could make customized battery pack specially for you!
