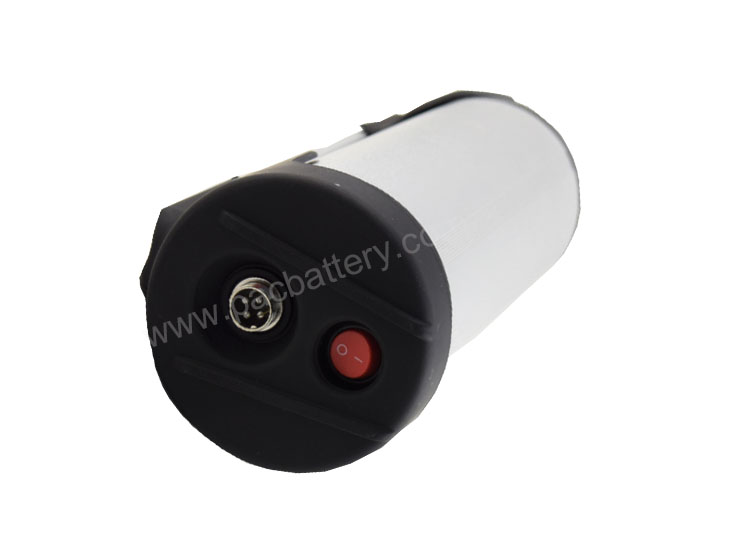

    E-Bike, electric bicycle battery 36V 8Ah, rechargeable lithium ion battery pack

    We have different options with 36V 8Ah, 9Ah, 10Ah, 12Ah by using different capacity cells. We could also make customized e-bike battery by using of Panasonic, LG, Samsung 18650 cell.

    enquiry
    • Specifications
    • Lithium Battery Advantages
    • One-Stop Services
    • Lithium Battery Application

    E-Bike, electric bicycle battery 36V 8Ah, rechargeable lithium ion battery pack

    Capacity: 8Ah (standard discharge(0.2C));
    Internal Resistance: ≤70mΩ;
    Nominal Voltage: 36V;
    Voltage at end of Discharge: 25V;
    Voltage at end of Charging: 42V;
    Standard Charge: Constant Current 0.2C Constant Voltage 42V 0.02C cut-off, charge time:Approx 6 hours;
    Standard Discharge: Constant Current 0.2C end Voltage 3.0V;
    Fast Charge: Constant Current 1C Constant, Voltage 42V 0.02C5A cut-off, charge time:Approx 2 hours;

    Operation Temperature Range: Charge:0~55℃, Discharge:-20~60℃.
    Storage Temperature Range:
    Less than 1 year:-20~25℃,
    Less than 3 months:-20~45℃






    1. Lighter weight, smaller size

    2. High temperature performance
    3. Extremely safe, no explosion, no fire under collision
    4. Strong over-discharge resistance and charge retention
    5. Strong charging acceptance and quick-charging capability
    6.Maintenance-free and no acid or water for maintenance in usage

    7. Large capability and long life for all high power output applications
    8. Environmentally friendly non-toxic, non-contaminating, no rare metal.
    9. Low self-discharge and good discharge performance at low temperature
    10. Excellent large current discharge performance especially in startup and climbing


    • Lithium polymer battery cell manufacturing, with 1000+ existing cell models.

    • Cylindrical Lithium ion battery cell manufacturing, with model of 18650, 26650, 14500, 32650, 38120.
    • Battery assembly with International branded 18650 cells, like Samsung, LG, • Panasonic, Sony, etc..
    • Battery management system (BMS/PCM) design, production is done in-house.
    • Battery Plastic housing tooling, injection is done in-house

    1.Light: headlamp, emergency light, solar flashlight, searchlight, lanten, bicycle light, LED light, military
    flashlight, high-end flashlight, high power flashlight, bright flashlight.
    2.Outdoor sports products: camping light, mountain bike light, solar emergency light, self-defense flashlight,
    3.Consumer electronics: MPS, Tablet PC. laptop, Bluetooth earphone, power bank, portable DVD player,
    speaker, microphone, sound equipment, audio, Digital camera
    4.Home appliances products: electric mop, electric vacuum cleaner, electric children toys, electric shoes,
    electric blanket.
    5.Medical devices
    6.Instruments and meters: water meter, gas meter.
    7.Electric transportation vehicles: electric bike, electric car, e-scooter, electric motor, electric trolley, electric cart.
    8.Power tools: electric drill, mower
    9.UPS, backup energy, storage energy.

    We warmly welcome OEM design inquiry! We could make customized battery pack specially for you!
