The Long life 7.4V 2500mAh 2S li-polymer battery pack is specifically engineered for professional-grade FPV drone racing. This standard series of FPV drone batteries offers an extended cycle life, a variety of size options, and outstanding performance. In addition, the battery packs feature a high discharge rate (45C/75C), delivering powerful bursts of energy ideal for racing, recreational, educational, and commercial applications. They are highly regarded for both their performance and affordability.
enquiry

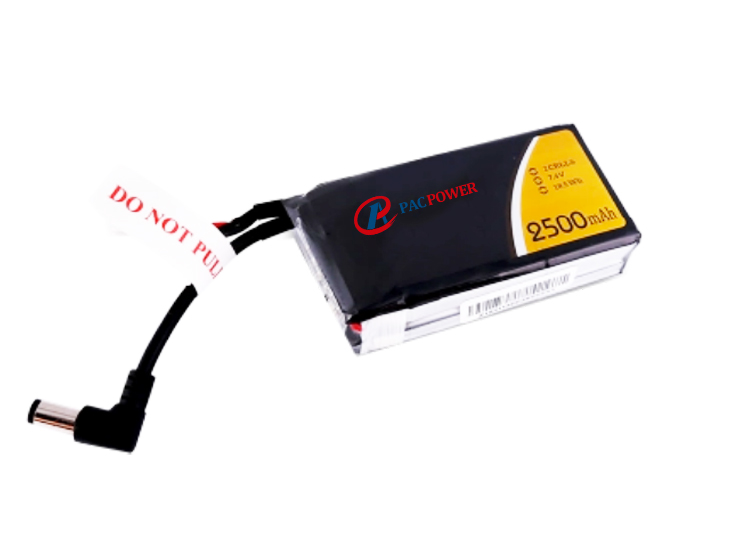

Long life 7.4V 2500mAh 2S li-polymer battery pack with DC 5.5mm connector
|
No.
|
Item
|
General Parameter
|
Remark
|
|
1.1
|
Description
|
Long life 7.4V 2500mAh 2S li-polymer battery pack with DC 5.5mm connector | |
|
1.2
|
Cell Model
|
3.7v 2500mAh
|
|
|
1.3
|
Typical Capacity
|
2500Ah
|
|
|
1.4
|
Typical Voltage
|
7.4V |
|
|
1.5
|
End of Charge Voltage
|
8.4V
|
|
|
1.6
|
Charge Current
|
1C
|
|
|
1.7
|
Charging time
|
1-2 hours |
|
|
1.8
|
End discharge Voltage
|
6V
|
|
|
1.9
|
Max continuous charge current
|
2.5A |
|
|
2.0
|
Maximum Continuous Discharging Current
|
1C |
|
|
2.1
|
Maximum pulse discharge current
|
3C
|
|
|
2.2
|
Over-Current Discharge Protection
|
YES |
|
|
2.3
|
Weight
|
102g
|
|
|
2.4
|
Dimension
|
18.6*38*74mm
|
|
|
2.5
|
Cycle life
|
≥500 times |
|
|
2.6
|
Operation Temperature Range
|
Charge 0~50 ℃, Discharge -20~60 ℃
|
Classic Series FPV Battery Product Features
● Lightweight design
● High discharge rate
● Low internal resistance (IR)
● Extended cycle life
● Stable discharge voltage
● Wide range of sizes available
● Ideal for FPV racing, cinematic drones, freestyle drones, and aircraft
Classic Series FPV Battery Applications
● Compatible with 1.6-2.5 inch FPV drones
● Suitable for 3-3.5 inch FPV drones
● Designed for 4 inch FPV drones
● Ideal for 5 inch FPV drones
● Optimized for 7-7.5 inch FPV drones
● Recommended for 8-10 inch FPV drones
As a globally leading lithium battery manufacturer, PAC provides professional customized solutions for high-discharge (up to 160C) FPV batteries to meet your specific application needs.
● Battery Types: High-discharge batteries, high-voltage batteries, low-temperature and high-temperature batteries
● Battery Capacity: Customizable without restrictions
● Cycle Life: Up to 600 cycles
● Operating Temperature: -40℃ to 60℃ / -50℃ to 50℃
● Battery Weight: Customized based on requirements
● Battery Dimensions: Customized based on requirements
● Connectors, Labels, and Packaging: Customized based on requirements
