  • LiFePO4 Battery 24V 15Ah with SMBus Smart BMS

    CATEGORY AND TAGS:
    EV/Golf Cart Batteries

    LiFePO4 Battery Pack 24V 15Ah is with smart BMS SMBus, made of 8S5P by LiFePO4 cell 26650.

    widely use for
    *Robot Sweeper,
    *Robot electric vehicle,
    *Portable devices,
    *Emergency light,
    *golf cart, wheelchair,
    *e-bike,
    *Electric scooter.

    enquiry
    • Specifications
    • LiFePO4 Battery Advantages
    • One-Stop Services
    • Battery Applications

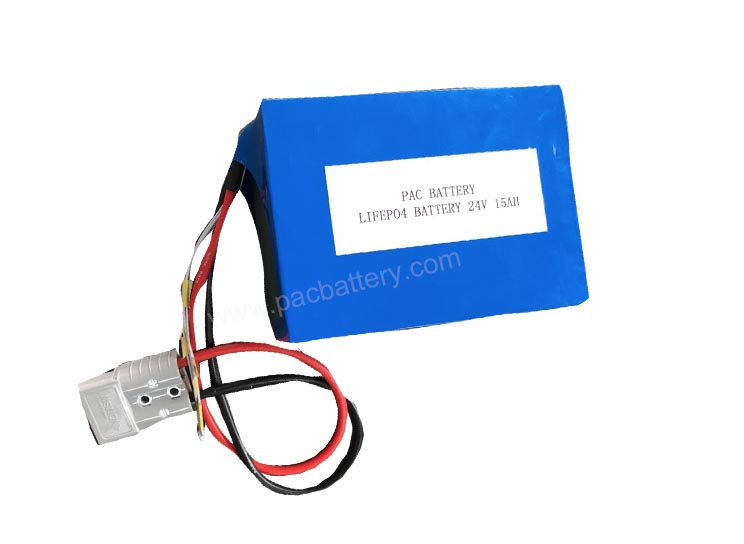

    LiFePO4 Battery 24V 15Ah with SMBus Smart BMS

    Rated Capacity: 15Ah;
    Nominal Voltage: 25.6V;
    End of Charge Voltage: 29.2V;
    Charge Mode: CC, CV;
    Charging cut-off current: 0.02C;
    Charging Time: 5-6 hours;
    Over-Charge Voltage Protection (per cell): 3.9V;
    Max. continuous charge current: 15A;
    Max. Continuous Discharge Current: 50A;
    Over-discharge Voltage Protection (per cell): 2.0V;
    Over-Current Discharge Protection: 100±10A;
    Short circuit protection: Yes;
    Short circuit protection Release: Disconnect the load;
    Communication protocol: SMBus /I2C;
    Battery Pack Dimension: 166*127*182mm;
    Weight: about 4kgs;
    Operation Temperature Range: Charge: 0~55℃; Discharge: -10~60℃;
    Storage Temperature Range: 1 month: -20℃ ~ 45℃
                                                          3 month: -20℃ ~ 45℃
                                                          1 year: -20℃ ~ 25℃
    Cycle Life: Higher than 80% of the Initial Capacities of the Cells
    2000 times≥Original capacity 80%;


    Longer Cycle Life
    : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.

    Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
    Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
    Wider Temperature Range: -20 C~60 C.
    Superior Safety: Lithium Iron Phosphate chemistry eliminates
    the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
    Increased Flexibility: Modular design enables deployment of up to four batteries in series and up to ten batteries in parallel.


    Lithium polymer battery cell manufacturing, with 1000+ existing cell models.

    Cylindrical Lithium ion battery (18650, 26650, 14500, 32650, 38120) cell manufacturing.
    Battery assembly with International branded 18650 cells, like Samsung, LG, Panasonic, Sony, etc..

    Battery management system (BMS/PCM) design, production is done in-house.
    Plastic housing tooling, injection is done in-house.



    1.Light: headlamp, emergency light, sloar flashlight, searchlight, lanten,bicycle light, LED light, military
    flashlight, high-end flashlight, high power flashlight, bright flashlight.
    2.Outdoor sports products: camping light, mountain bike light, solor emergency light, self-defense flashlight,
    3.Consumer electronics: MPS, Tablet PC. laptop, Bluetooth earphone, power bank, portable DVD player,
    speaker, microphone, sound equipment, audio, Digital camera, vidican.
    4.Home appliances products: electric mop, electric vacuum cleaner, electric children toys, electric shoes,
    electric blanket.
    5.Medical devices
    6.Instruments and meters: water meter, gas meter.
    7.Electric transportation vehicles: electric bike, electric car, e-scooter, electric motor, electric trolley, electric cart.
    8.Power tools: electric drill, mower
    9.UPS, backup energy, storage energy.

    We warmly welcome OEM design inquiry! We could make customized battery pack specially for you!
