  • Golf cart lithium LiFePO4 Battery 76.8V 105Ah support RS485/CAN/Bluetooth

    CATEGORY AND TAGS:
    EV/Golf Cart Batteries, LiFePO4 Battery , , , , ,

    Golf cart lithium LiFePO4 Battery 76.8V 105Ah support RS485/CAN/Bluetooth:
    1. High Performance
    2. 200A BMS & IP67 & 5 years warranty
    3. Get rid of lead-acid battery
    4. Born for Golf carts & LCD monitor
    5. Versatile Compatibility

    enquiry
    • Specifications
    • Features
    • Battery Applications
    • OEM/ODM services

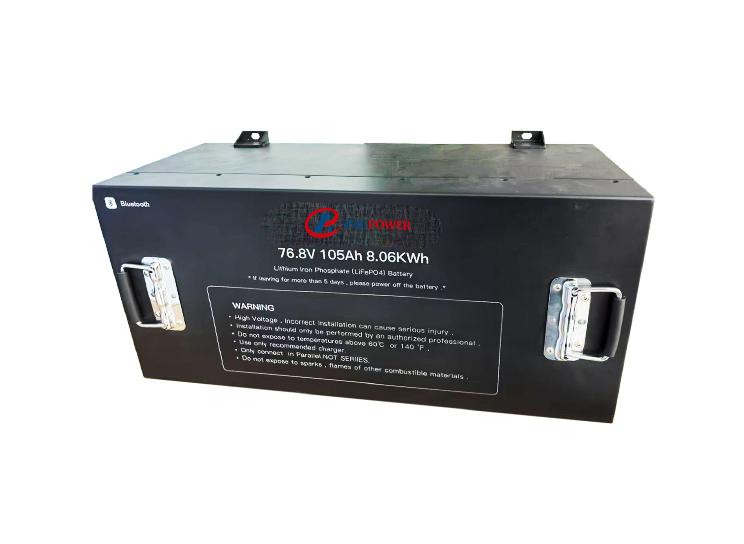

    Golf cart lithium LiFePO4 Battery 76.8V 105Ah support RS485/CAN/Bluetooth

    No.
    Item
    General Parameter
    Remark
    1.1
    Description
    Golf cart lithium LiFePO4 Battery 76.8V 105Ah support RS485/CAN/Bluetooth
    1.2
    Cell Model
    3.2v 105Ah

    1.3
    Typical Capacity
    105Ah

    1.4
    Typical Voltage
    76.8V

    1.5
    End of Charge Voltage
    87.6V

    1.6
    Standard Charge Current
    21A

    1.7
    Charging time
    5~6 hours

    1.8
    End discharge Voltage
    64.8V

    1.9
    Max continuous charge current
    105A

    2.0
    Maximum Continuous Discharging Current
    200A

    2.1
    Terminal
    M8

    2.2
    Over-Current Discharge Protection
    YES

    2.3
    Weight
    72.8kgs

    2.4
    Dimension
    674*338*275mm

    2.5
    Cycle life
    ≥3000 times

    2.6
    Operation Temperature Range
    Charge 0~50 ℃, Discharge -20~60 ℃

    • High Performance:
      76.8V 105Ah Golf Cart LiFePO4 battery with 8064Wh energy, which is equivalent to 6pcs 12V 100Ah LiFePO4 in 4S (even 6pcs 12V 100Ah AGM batteries in 6S). It has a great 15.36kW power with low self-discharge rate, low capacity loss, more stable performance, and continuous discharge current up to 200A (Max. discharge current up to 300A/30S), which is 50% more powerful than the other same-size lithium battery.
    • 200A BMS & IP67 & 5 years warranty:
      PAC  provides 5 years of warranty service for 76.8V Golf Cart Battery built-in with 200A BMS, which provides over-charge/over-discharge/short-circuit/over-temperature/over-current protection and energy equalization, deep cycles up to 4000 times, and the IP67-rated metal shell package is waterproof and dustproof, providing long-lasting, stable power support and worry-free protection for your equipment.
    • Get rid of lead-acid battery:
      PAC 76.8V 105Ah lithium golf cart battery provide deep cycles up to 4000+, continuous discharge current up to 300A (Peak 400A 35S, 600A 3S),which is 50% more powerful than the other same-size lithium battery. delivering exceptional acceleration and performance. Allowing you to enjoy continuous golfing for up to 50 miles on a single charge.
    • Born for Golf carts & LCD monitor:

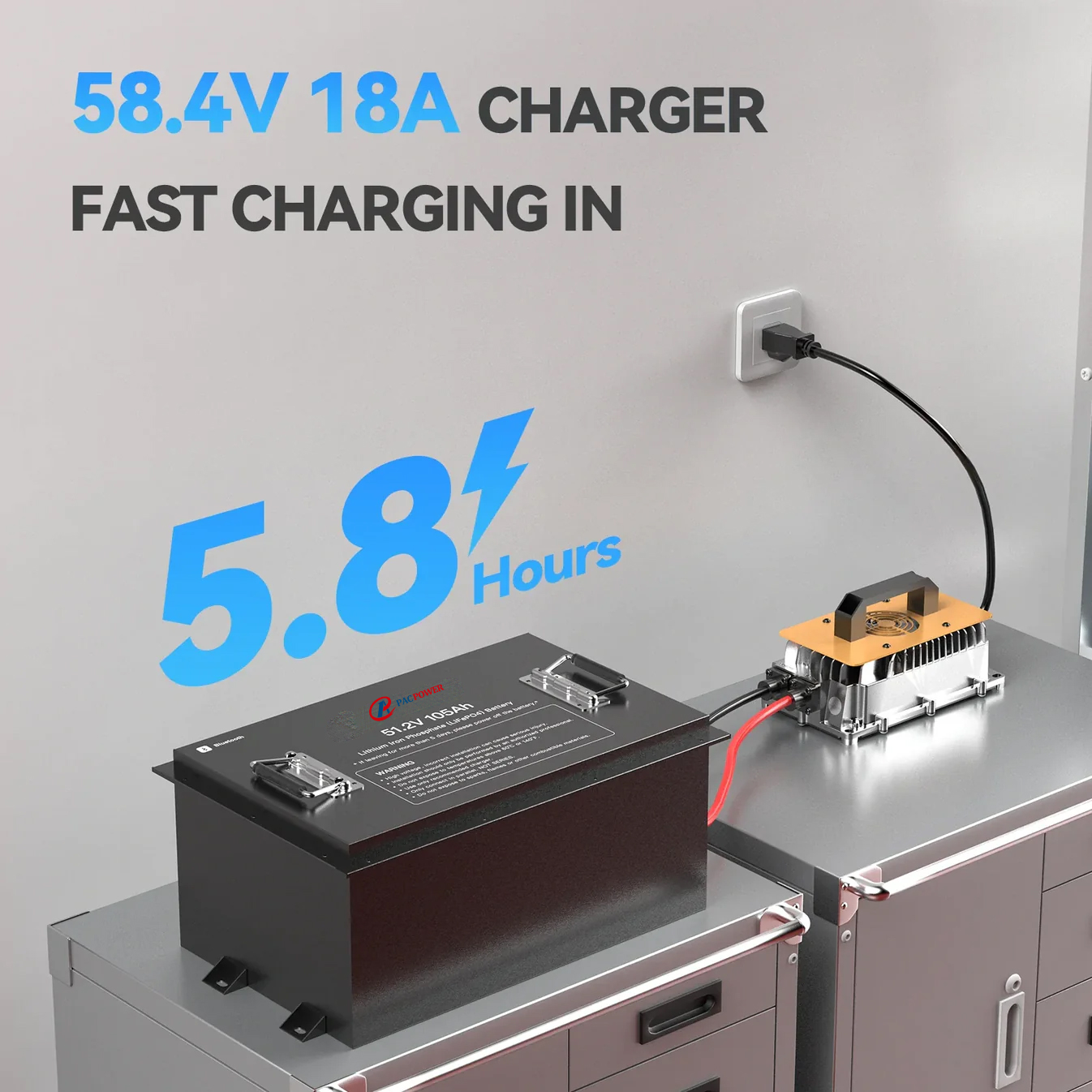

      Comes with a 58.4V 18A LiFePO4 charger, which supports fast
      charging, 0% to 100% in just 5.8 hours. Equipped with a 2.8-inch touch screen you can view and control the battery in real time on the LCD screen. PAC golf cart battery has added an APP function for read or control the battery various data (SOC) in real-time via connecting the battery through Mobile APP.
    • Versatile Compatibility:
      76.8volt lithium battery for golf cart wide applications including golf carts,like Club Car, EZ GO, lawnmowers, RVs, trolling motors, marine vessels, and off-grid systems. Wight only 72.8KG, ultral lightweight for replacement, ideal choice for powering outdoor campsites and easy installation indoors.

    As a globally leading lithium battery manufacturer, PAC provides professional customized solutions for high performance lithium batteries to meet your specific application needs.
    ● Battery Types: High-discharge batteries, high-voltage batteries, low-temperature and high-temperature batteries, high energy density batteries.
    ● Battery Capacity: Customizable without restrictions
    ● Cycle Life: Up to 6000 cycles
    ● Operating Temperature: -40℃ to 60℃ / -50℃ to 50℃
    ● Battery Weight: Customized based on requirements
    ● Battery Dimensions: Customized based on requirements
    ● Connectors, Labels, and Packaging: Customized based on requirements
