  • 120Vac Off-Grid Solar Inverter haute fréquence 3KW phase divisée monophasée

    CATÉGORIE ET ​​TAGS:
    Inverser solaire , , , , , ,

    BP series off grid solar inverter is integrated with a MPPT solar charge controller, a high frequency pure sine inverter and a UPS function module in one machine. This inverter can work with or without batteries. (When inverters work in parallel, the system must use batteries)

    The inverter has 120Vac output, it can use 2 units in parallel to make split phase 120V/240V.

    demande de renseignements
    • Caractéristiques
    • Main Features of 120V solar Inverter

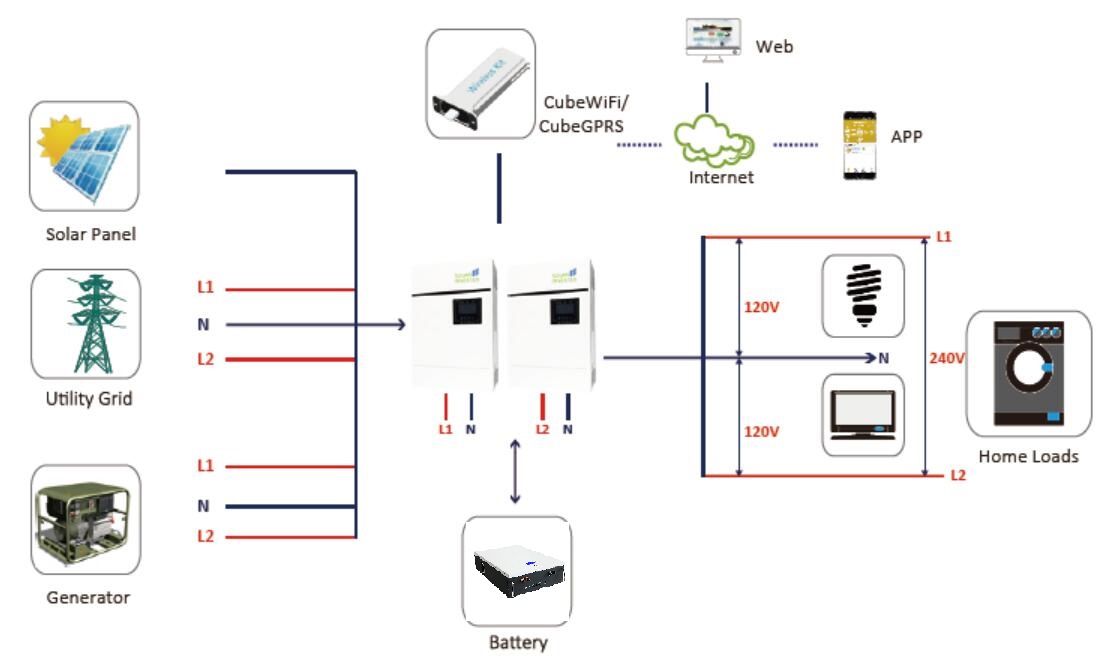

    • Inverter working diagram
    • Schematic diagram of parallel connection

    120Vac Off-Grid Solar Inverter haute fréquence 3KW phase divisée monophasée

    Article Specificaton
    Model 3KW
    Rated Power 3000VA/3000W
    System DC voltage 48VDC
    Parallel Option Oui, Jusqu'à 6 units
    Monitoring Option WiFi or GPRS(Optional)
    Inverter Output
    Tension AC 100V-110V-120Vac
    Surge Power 6000VA
    Peak Efficiency 93%
    Transfer Time 10ms(For personal computers); 20ms(For home appliances)
    Waveform Pure Sine Wave
    Solar Charger & AC Charger
    max. PV Array Open Circuit Voltage 250Vdc
    max. PV Array Power 4000W
    Operating Voltage MPPT Range 120~250Vdc
    Battery Overcharge Protection 60Vdc
    max. Solar Charge Current 80UNE
    max. AC Charge Current 60UNE
    max. Courant de charge 80UNE
    Physical
    Dimension 470×320×135mm
    Net Weight 11.5kg
    Communication Interface CAN/RS485/RS232
    Environment
    Humidity 5% à 95% Relative Humidity(non-condensing)
    Température de fonctionnement 0℃~50℃
    Espace de rangement -15℃~60℃
    • Rated power 3KW
    • Built-in MPPT, MPPT voltage range 120V~250Vdc
    • Pure sine wave AC output
    • Solar and utility joint to power the loads
    • With the ability to work with or without battery
    • Parallel operation up to 6 units
    • WIFI/ GPRS remote monitoring
    • CAN/ RS485 communication for battery BMS
