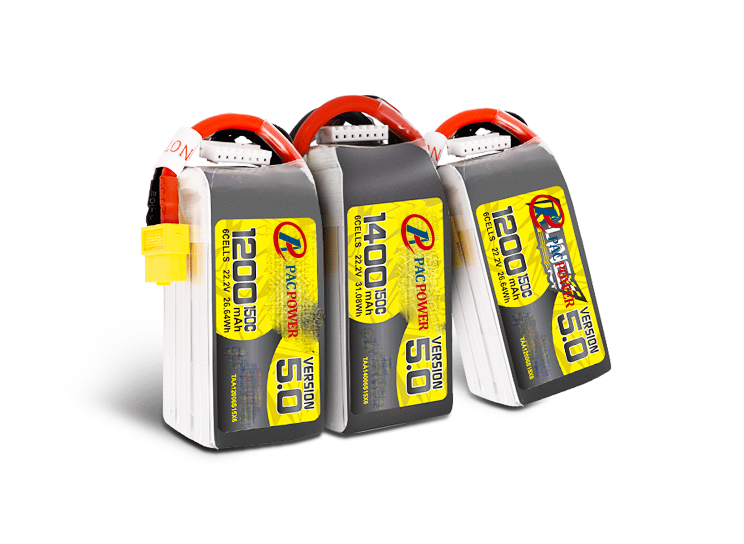

The new version First choice for professional FPV drone racing 22.2V 1200mAh 150C 6S lipo battery pack RC Airplane Helicopter boasts a significantly enhanced discharge rate of up to 150C, making it the go-to choice for professional FPV drone racers who demand superior battery performance. The R-Line 5.0 series offers a range of capacities from 850mAh to 1800mAh, catering to the diverse needs and preferences within the competitive FPV community. This advancement over the previous 1.0 and 3.0 versions underscores our commitment to innovation and meeting the high-performance demands of serious FPV pilots.
enquiry
First choice for professional FPV drone racing 22.2V 1200mAh 150C 6S lipo battery pack RC Airplane Helicopter
|
No.
|
Item
|
General Parameter
|
Remark
|
|
1.1
|
Description
|
First choice for professional FPV drone racing 22.2V 1200mAh 150C 6S lipo battery pack RC Airplane Helicopter | |
|
1.2
|
Cell Model
|
3.7v 1200mAh
|
|
|
1.3
|
Typical Capacity
|
1200mAh
|
|
|
1.4
|
Typical Voltage
|
22.2V |
|
|
1.5
|
End of Charge Voltage
|
25.2V
|
|
|
1.6
|
Charge Current
|
5C
|
|
|
1.7
|
Charging time
|
20 minutes |
|
|
1.8
|
End discharge Voltage
|
18V
|
|
|
1.9
|
Max continuous charge current
|
6000mA |
|
|
2.0
|
Maximum Continuous Discharging Current
|
150C |
|
|
2.1
|
Maximum pulse discharge current
|
300C
|
|
|
2.2
|
Over-Current Discharge Protection
|
YES |
|
|
2.3
|
Weight
|
205g
|
|
|
2.4
|
Dimension
|
37.5 * 41.0 * 81.0mm
|
|
|
2.5
|
Cycle life
|
≥500 times |
|
|
2.6
|
Operation Temperature Range
|
Charge 0~50 ℃, Discharge -20~60 ℃
|
5.0 Series FPV Battery Features：
● Utilization of X-technology AI Boehmite
● Highly consistent and continuous power output
● Higher capacity than packs of equivalent size
● Extremely high C-rating, designed for professional FPV racing
● Minimized performance degradation after cycles
● Impact resistance
Classic Series FPV Battery Applications
● Compatible with 1.6-2.5 inch FPV drones
● Suitable for 3-3.5 inch FPV drones
● Designed for 4 inch FPV drones
● Ideal for 5 inch FPV drones
● Optimized for 7-7.5 inch FPV drones
● Recommended for 8-10 inch FPV drones
As a globally leading lithium battery manufacturer, PAC provides professional customized solutions for high-discharge (up to 160C) FPV batteries to meet your specific application needs.
● Battery Types: High-discharge batteries, high-voltage batteries, low-temperature and high-temperature batteries
● Battery Capacity: Customizable without restrictions
● Cycle Life: Up to 600 cycles
● Operating Temperature: -40℃ to 60℃ / -50℃ to 50℃
● Battery Weight: Customized based on requirements
● Battery Dimensions: Customized based on requirements
● Connectors, Labels, and Packaging: Customized based on requirements
