We are proud to introduce a revolutionary semi-solid-state battery, engineered to redefine the performance of commercial drones with its industry-leading energy density of 330Wh/kg. This battery incorporates innovative dual-electrolyte technology, paired with a high-nickel NMC cathode, silicon-carbon anode, and advanced coated separator. It not only extends flight time but also delivers over 1,200 charge cycles and supports 2C fast charging. Capable of operating safely and stably in extreme temperatures from -40°C to 60°C, this battery is ideally suited for logistics, inspection, agriculture, and industrial applications—effectively reducing downtime and cutting operational costs.
enquiry
330Wh/kg semi-solid-state high specific energy density batteries 12S 14S 18S 66.6V 25Ah for UAV commercial drone
|
No.
|
Item
|
General Parameter
|
Remark
|
|
1.1
|
Description
|
330Wh/kg semi-solid-state high specific energy density batteries 12S 14S 18S 66.6V 25Ah for UAV commercial drone | |
|
1.2
|
Cell Model
|
3.7v 25Ah
|
|
|
1.3
|
Typical Capacity
|
25000mAh
|
|
|
1.4
|
Typical Voltage
|
66.6V |
|
|
1.5
|
End of Charge Voltage
|
75.6V
|
|
|
1.6
|
Charge Current
|
3C
|
|
|
1.7
|
Charging time
|
25 minutes |
|
|
1.8
|
End discharge Voltage
|
54V
|
|
|
1.9
|
Max continuous charge current
|
75A |
|
|
2.0
|
Maximum Continuous Discharging Current
|
3C |
|
|
2.1
|
Maximum pulse discharge current
|
10C
|
|
|
2.2
|
Over-Current Discharge Protection
|
YES |
|
|
2.3
|
Weight
|
13.5g
|
|
|
2.4
|
Dimension
|
183.5×151.5×292mm
|
|
|
2.5
|
Cycle life
|
≥1200 times |
|
|
2.6
|
Operation Temperature Range
|
Charge 0~50 ℃, Discharge -40~60 ℃
|
Features of the 330Wh/kg Semi-Solid-State High-Specific-Energy Battery Series:

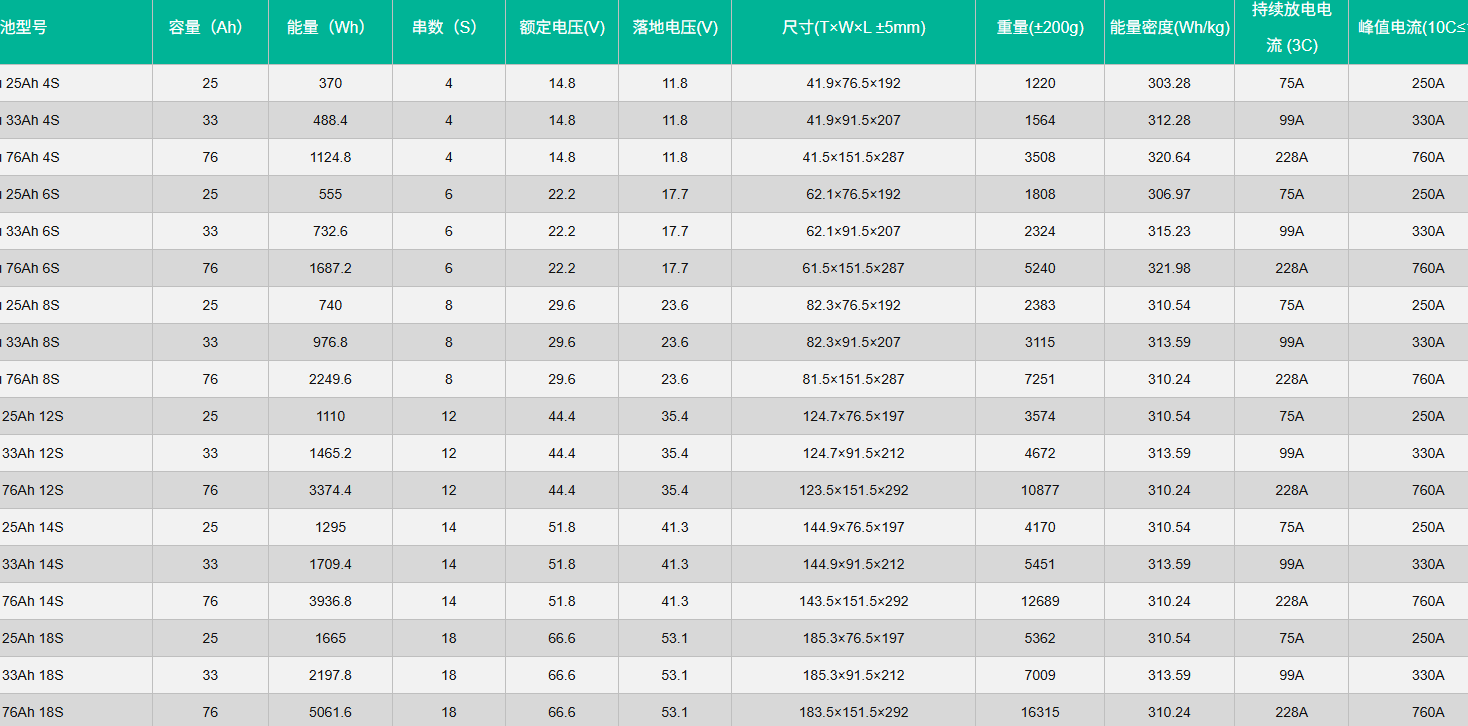

330Wh/kg Semi-Solid-State High-Specific-Energy Battery Series parameters:
330Wh/kg Semi-Solid-State Battery Series: Powering the Future of UAV Applications
The 330Wh/kg Battery Series represents the next generation of semi-solid-state lithium-polymer technology, delivering exceptional energy density and extended service life. Engineered specifically for small to medium-sized drones, these power solutions excel in mapping, inspection, surveying, and delivery applications—where lightweight design, compact form factor, and superior endurance are critical to mission success.
Why Choose Our Battery Solutions?
Integrated Manufacturing Capability
As a certified source manufacturer with state-of-the-art facilities, we maintain complete control over the entire production process. This ensures rapid turnaround times, consistent supply, and competitive pricing.
Proprietary Cell Technology
Our self-developed cells undergo rigorous testing to guarantee rated capacity and performance consistency, eliminating the common issue of overstated specifications in the market.
Comprehensive Quality Assurance
We implement a stringent quality management system that monitors every stage—from raw material selection to final assembly—delivering products of uncompromising reliability.
Global Safety Certification
All batteries are designed and tested to comply with international safety standards, ensuring certified performance for worldwide deployment.
Responsive Technical Support
Our dedicated service team provides prompt, professional assistance and customized solutions to address your specific operational requirements.
Our Service Commitment:
Customized battery solutions tailored to your unique specifications
Proven performance and long-term reliability
Sample support and scalable mass production
Comprehensive OEM/ODM services
Discover how our advanced battery technology can enhance your drone's capabilities. Contact our team for technical consultation and sample requests.
