The FPV Racing Drone Battery 6S 22.2V 1480mAh high rate Lipo batteries is specifically engineered for professional-grade FPV drone racing. The series incorporates new cell technology, delivering a discharge rate of up to 160C, and significantly improves power output, responsiveness, and stability — providing robust support for high-intensity racing flights. The product line also features two specialized versions: ST and SQ, each optimized for different drone structures and flight scenarios. With enhanced compatibility, they cater to the diverse needs of FPV pilots worldwide.
запрос
FPV Racing Drone Battery 6S 22.2V 1480mAh high rate Lipo batteries
|
нет.
|
Пункт
|
Общий параметр
|
замечание
|
|
1.1
|
Описание
|
FPV Racing Drone Battery 6S 22.2V 1480mAh high rate Lipo batteries | |
|
1.2
|
Cell Model
|
3.7v 1480mAh
|
|
|
1.3
|
Номинальная емкость
|
1480ах
|
|
|
1.4
|
Типичное напряжение
|
22.2V |
|
|
1.5
|
Конец напряжения заряда
|
25.2V
|
|
|
1.6
|
ток заряда
|
5С
|
|
|
1.7
|
Время зарядки
|
20 минуты |
|
|
1.8
|
Конец разрядки напряжения
|
18V
|
|
|
1.9
|
Максимальный непрерывный ток заряда
|
7400мА |
|
|
2.0
|
Максимальный непрерывный ток разряда
|
40С |
|
|
2.1
|
Максимальный ток пульсного разряда
|
160С
|
|
|
2.2
|
Чрезмерный ток разряда
|
Максимальный ток заряда/разряда |
|
|
2.3
|
Защита от короткого замыкания
|
Максимальный ток заряда/разряда
|
|
|
2.4
|
измерение
|
77*37.6*36.5 mm/69.5*42*36.5 mm
|
|
|
2.5
|
жизненный цикл
|
≥300 times |
|
|
2.6
|
Рабочий диапазон температур
|
Заряд 0 ~ 50 ℃, Разряд -20 ~ 60 ℃
|
R-LINE V6.0 Series FPV Battery Product Features：
Nano-level power transmission with a 20% reduction in internal resistance
Highly consistent and continuous power output
Weight energy density increased by 17%
Reinforced materials and design for improved wear resistance, heat resistance, and impact protection
High C-rating, specifically designed for professional FPV racing
3D conductive matrix ensures stable high-rate discharge
Volumetric energy density increased by 26%

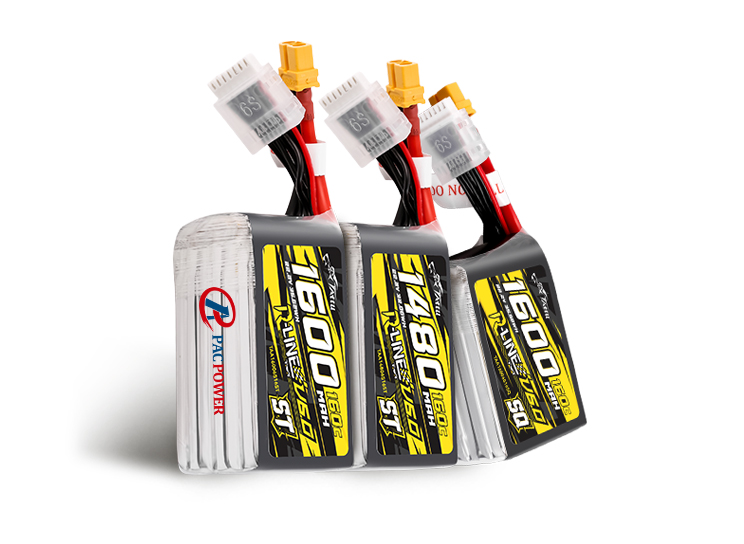

SQ Model: Concentrated center of gravity for enhanced handling and control
ST Model: Standard size, compatible with various FPV frames, offering flexible and easy installation
R-LINE V6.0 Series FPV Battery Applications
● Compatible with 4-inch FPV drones
● Suitable for 5-inch FPV drones
● Designed for 7–7.5-inch FPV drones
● Ideal for 8–10-inch FPV drones
As a globally leading lithium battery manufacturer, PAC provides professional customized solutions for high-discharge (up to 160C) FPV batteries to meet your specific application needs.
● Battery Types: High-discharge batteries, high-voltage batteries, low-temperature and high-temperature batteries
● Battery Capacity: Customizable without restrictions
● Cycle Life: Вплоть до 600 циклы
● Operating Temperature: -40℃ to 60℃ / -50℃ to 50℃
● Battery Weight: Customized based on requirements
● Battery Dimensions: Customized based on requirements
● Connectors, Labels, and Packaging: Customized based on requirements
