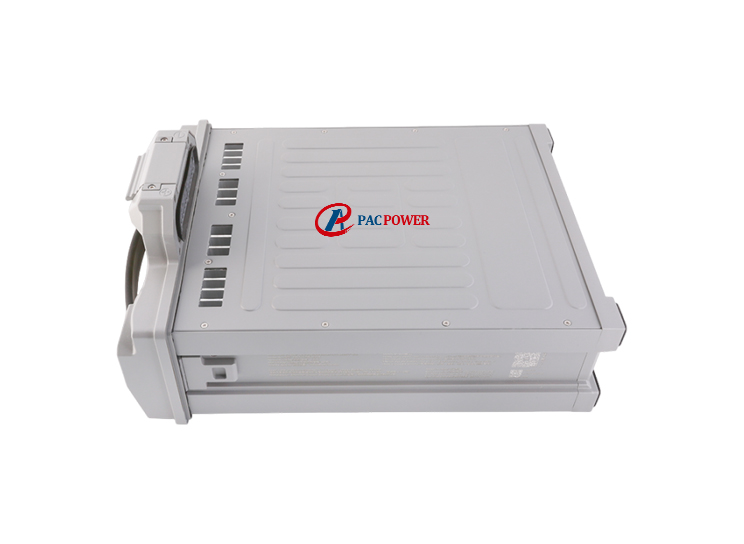

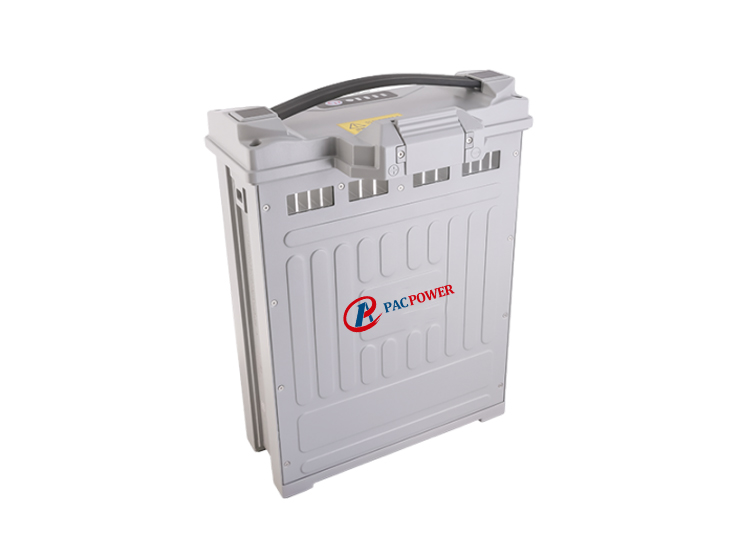

Intelligent Drone Battery 20000mAh 25C high voltage 53.2V 14S1P lithium pack for aerial photography drone – Product Features：
1. High-performance cells supporting 5C charging and 9C discharging
2. Excellent thermal management with an advanced cooling duct design for efficient heat dissipation during flight
3. Integrated MOS switch protection
4. IP65 waterproof rating
5. Robust plug-and-play structure designed for fast and efficient battery replacement
6. Cycle life of up to 1000 charges
Batería de drones inteligente 20000mAh 25c alto voltaje 53.2V 14S1P Pack de litio para fotografía aérea Drone
|
No.
|
ít.
|
Parámetro general
|
Observación
|
|
1.1
|
Descripción
|
Batería de drones inteligente 20000mAh 25c alto voltaje 53.2V 14S1P Pack de litio para fotografía aérea Drone | |
|
1.2
|
Modelo celular
|
3.8v 20Ah
|
|
|
1.3
|
Capacidad típica
|
20ah
|
|
|
1.4
|
tensión típica
|
53.2V |
|
|
1.5
|
Fin de voltaje de carga
|
60.9V
|
|
|
1.6
|
Corriente de carga
|
0.5C 10A
|
|
|
1.7
|
Tiempo de carga
|
2-3 horas
|
|
|
1.8
|
Tensión de descarga final
|
42V
|
|
|
1.9
|
corriente de carga continua Max
|
5do
|
|
|
2.0
|
Continua máxima corriente de descarga
|
180UN |
|
|
2.1
|
Maximum pulse discharge current
|
300A ≤ 3S
|
|
|
2.2
|
Protocolo de comunicación
|
DroneCAN |
|
|
2.3
|
Dimensiones
|
Max(H*W*L)104.5*252.5*264
|
|
|
2.4
|
Peso
|
7900±300g
|
|
|
2.5
|
Ciclo de vida
|
≥1000 |
|
|
2.6
|
Rango de temperatura de operación
|
Charge 10~50 ℃, Discharge -20~60 ℃
|
The 20000mAh 25C 53.2V 14S1P High-Voltage Intelligent Drone Battery utilizes an innovative high-rate formula, supporting up to 5C fast charging and 9C continuous discharge. Its integrated surface shell design provides excellent waterproof, dustproof, insulation, and heat dissipation performance. The full aluminum alloy housing, combined with a specially designed convection cooling window, ensures stable operation even in high-temperature environments.
Equipped with a self-developed BMS, the battery offers multi-layer protection for flight safety, including safeguards against overcharge/over-discharge, short circuits, extreme temperatures, and other abnormal conditions. It also features an automatic storage mode that self-balances cell voltage differences to maintain battery health, supporting safe storage for up to 30 days at 60°C.
Additionally, the battery incorporates an integrated MOS switch that enhances protection, eficiencia, and management. This component combines multiple functions such as over-current protection, under-voltage protection, smart charging, remote control, and improved energy efficiency in a single unit. Users can also conveniently monitor battery status via a Bluetooth-connected mobile application for precise drone operation.
The Intelligent Drone Battery 20000mAh 25C high voltage 53.2V 14S1P lithium pack for aerial photography drone is suitable for a wide range of commercial and professional drone systems. It features smart functions including data acquisition, safety alerts, power calculation, auto-balancing, charging reminders, abnormal status alarms, and data transmission.
Application Scenarios
Agricultural plant protection drones
Surveying and mapping drones
Police and law enforcement drones
Electric Vertical Take-Off and Landing (eVTOL) drones
Logistics and delivery drones
Inspection drones
Aerial photography drones
Construction drones
Geological exploration drones
Damos una calurosa bienvenida a la investigación de diseño OEM! Podríamos hacer batería personalizado especialmente para usted!
1.Larga vida útil, gran capacidad y buena resistencia a los golpes
2.Baja auto-descarga y el buen funcionamiento de la descarga a baja temperatura
3.la aceptación de carga fuerte y la capacidad de carga rápida
4.Strong resistencia sobre-descarga y retención de carga
5.Libre de mantenimiento y no ácido o agua para el mantenimiento en el uso
6.Excelente gran rendimiento de descarga de corriente, y tienen ventajas obvias en el arranque y escalada
7. rendimiento a altas temperaturas
8. Amigable con el medio ambiente
9. Un peso más ligero menor tamaño
10.Más segura ninguna explosión ni fuego
