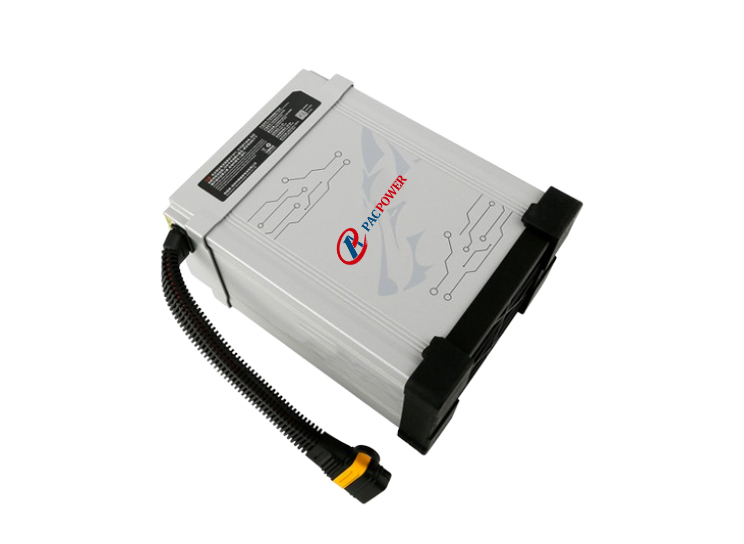

53.2V lipo battery pack 14S 25C high platform 22000mAh for police drone
The 22000mAh 25C 53.2V 14S High-Voltage Intelligent Drone Battery is specifically designed for high-performance drones, delivering outstanding endurance and stability. With its 53.2V 14S high-voltage architecture, this battery significantly improves energy density and efficiency while ensuring consistent voltage output during operation.
Equipped with an intelligent battery management system (BMS), it provides comprehensive safety protection against potential risks such as overcharging, over-discharging, and overheating—offering users greater peace of mind during flight.
investigación
53.2V lipo battery pack 14S 25C high platform 22000mAh for police drone
|
No.
|
ít.
|
Parámetro general
|
Observación
|
|
1.1
|
Descripción
|
53.2V lipo battery pack 14S 25C high platform 22000mAh for police drone | |
|
1.2
|
Modelo celular
|
3.8v 22Ah
|
|
|
1.3
|
Capacidad típica
|
22ah
|
|
|
1.4
|
tensión típica
|
53.2V |
|
|
1.5
|
Fin de voltaje de carga
|
60.9V
|
|
|
1.6
|
Corriente de carga
|
0.5C 11A
|
|
|
1.7
|
Tiempo de carga
|
2-3 horas
|
|
|
1.8
|
Tensión de descarga final
|
42V
|
|
|
1.9
|
corriente de carga continua Max
|
5do
|
|
|
2.0
|
Continua máxima corriente de descarga
|
100UN |
|
|
2.1
|
Maximum pulse discharge current
|
150A ≤ 3S
|
|
|
2.2
|
Protocolo de comunicación
|
DroneCAN |
|
|
2.3
|
Dimensiones
|
Max(H*W*L)226*166.5*110mm
|
|
|
2.4
|
Peso
|
6550gramo
|
|
|
2.5
|
Ciclo de vida
|
≥600 |
|
|
2.6
|
Rango de temperatura de operación
|
Charge 10~50 ℃, Discharge -20~60 ℃
|
The 53.2V lipo battery pack 14S 25C high platform 22000mAh for police drone utilizes an innovative high-rate formula, supporting up to 5C fast charging and 100A continuous discharge. Its integrated surface shell design provides excellent waterproof, dustproof, insulation, and heat dissipation performance. The full aluminum alloy housing, combined with a specially designed convection cooling window, ensures stable operation even in high-temperature environments.
Equipped with a self-developed BMS, the battery offers multi-layer protection for flight safety, including safeguards against overcharge/over-discharge, short circuits, extreme temperatures, and other abnormal conditions. It also features an automatic storage mode that self-balances cell voltage differences to maintain battery health, supporting safe storage for up to 30 days at 60°C.
Additionally, the battery incorporates an integrated MOS switch that enhances protection, eficiencia, and management. This component combines multiple functions such as over-current protection, under-voltage protection, smart charging, remote control, and improved energy efficiency in a single unit. Users can also conveniently monitor battery status via a Bluetooth-connected mobile application for precise drone operation.
The 53.2V lipo battery pack 14S 25C high platform 22000mAh for police drone is suitable for a wide range of commercial and professional drone systems. It features smart functions including data acquisition, safety alerts, power calculation, auto-balancing, charging reminders, abnormal status alarms, and data transmission.
Application Scenarios
Agricultural plant protection drones
Surveying and mapping drones
Police and law enforcement drones
Electric Vertical Take-Off and Landing (eVTOL) drones
Logistics and delivery drones
Inspection drones
Aerial photography drones
Construction drones
Geological exploration drones
Damos una calurosa bienvenida a la investigación de diseño OEM! Podríamos hacer batería personalizado especialmente para usted!
1.Larga vida útil, gran capacidad y buena resistencia a los golpes
2.Baja auto-descarga y el buen funcionamiento de la descarga a baja temperatura
3.la aceptación de carga fuerte y la capacidad de carga rápida
4.Strong resistencia sobre-descarga y retención de carga
5.Libre de mantenimiento y no ácido o agua para el mantenimiento en el uso
6.Excelente gran rendimiento de descarga de corriente, y tienen ventajas obvias en el arranque y escalada
7. rendimiento a altas temperaturas
8. Amigable con el medio ambiente
9. Un peso más ligero menor tamaño
10.Más segura ninguna explosión ni fuego
