The 7200W Dual-Channel 12-14S Drone Battery Smart Charger is an upgraded intelligent high-power dual-channel charger capable of delivering an output current of up to 120A. It is compatible with 12-14S LiPo and LiHV smart batteries. The charger can automatically read battery information, enabling plug-and-charge operation without manual parameter configuration. During the charging process, the charger monitors the battery status in real time and automatically stops charging when the battery is fully charged. In Ergänzung, it offers comprehensive safety protection features including over-temperature, over-current, over-charge, and disconnection protection to ensure safe operation.
Anfrage
7200W Dual-Channel smart charger 120A quick charge for 12-14S Drone Battery pack
|
Nein.
|
Artikel
|
Allgemein Parameter
|
Anmerkung
|
|
1.1
|
Beschreibung
|
7200W Dual-Channel smart charger 120A quick charge for 12-14S Drone Battery pack | |
|
1.2
|
Eingangsspannung
|
AC 100~240V
|
|
|
1.3
|
Eingangsfrequenz | 60Hz/50Hz |
|
|
1.4
|
Output voltage(unload)
|
DC 20~62V
|
|
|
1.5
|
Charging power
|
Max. 7200W
|
|
|
1.6
|
Output current
|
Max. 120EIN
|
|
|
1.7
|
Turn-on Delay time
|
5S
|
|
|
1.8
|
Hold-up time
|
5Frau
|
|
|
1.9
|
Ripple & Nosic | 120mVp-p |
|
|
2.0
|
Überstromschutz |
JA
|
|
|
2.1
|
Batterietyp | LiPO battery/LiHV12-14S |
|
|
2.2
|
Short Circuit protectioin | Ja |
|
|
2.3
|
EMC Standards |
FCC, DAS, CCC, PSE, etc..
|
|
|
2.4
|
Abmessungen
|
398x225x217mm
|
|
|
2.5
|
Gewicht |
10kg
|
|
|
2.6
|
Working temp. |
0Solarwechselrichter mit reiner Sinuswelle
|
1.Licht: Scheinwerfer, Notlicht, Solartaschenlampe, Suchscheinwerfer, lanten, Fahrradlicht, LED-Licht, Militär-
Taschenlampe, High-End-Taschenlampe, High-Power-Taschenlampe, helle Taschenlampe.
2.Outdoor-Sport-Produkte: Camping Licht, Mountainbike Licht, Solar-Notlicht, Selbstverteidigung Taschenlampe,
3.Unterhaltungselektronik: MPS, Tablet. Laptop, Bluetooth-Kopfhörer, Energienbank, tragbarer DVD-Player,
Redner, Mikrofon, Tonausrüstung, Audio-, Digitalkamera
4.Haushaltsgeräte-Produkte: Elektro Mopp, Elektrischer Staubsauger, elektrisches Kinderspielzeug, elektrische Schuhe,
Heizdecke.
5.Medizinische Geräte
6.Instrumente und Meter: Wasseruhr, Gaszähler.
7.Elektro-Transporter: elektrisches Fahrrad, Elektroauto, E-Scooter, Elektromotor, Elektrofahrwerk, Elektrowagen.
8.Elektrowerkzeuge: elektrische Bohrmaschine, Mäher
9.UPS, Backup-Energie, Speicherenergie.
Wir begrüßen OEM-Design-Anfrage! Wir könnten maßgeschneiderte Akku-Pack machen speziell für Sie!

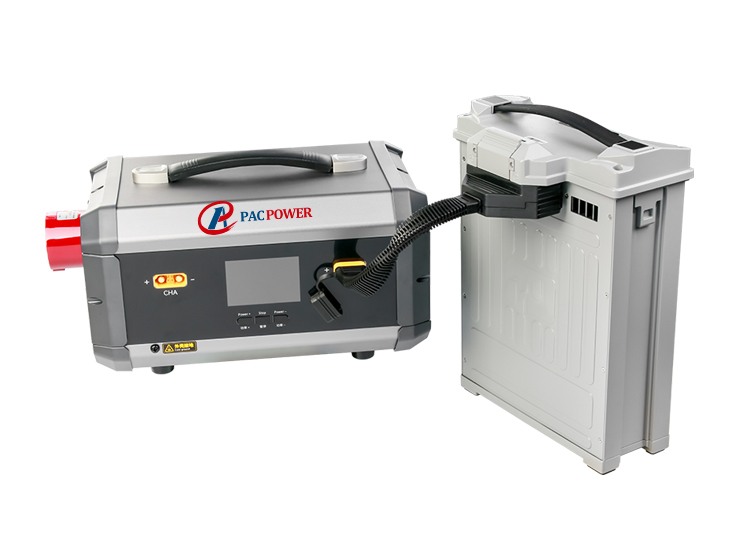

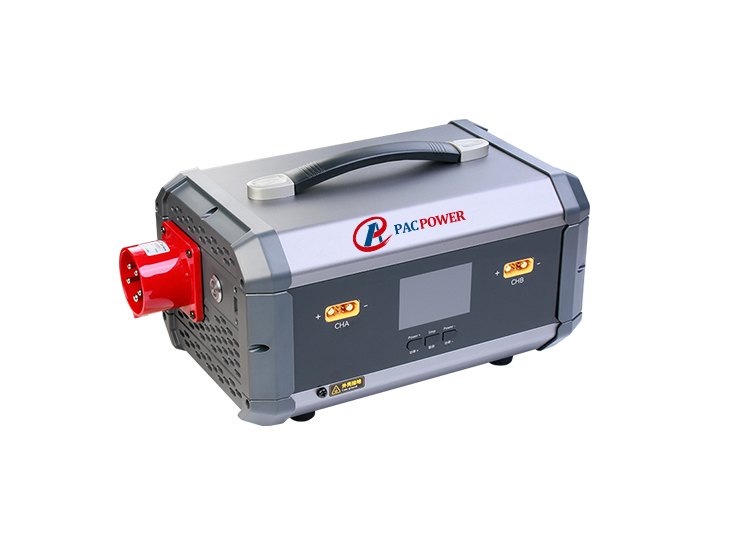

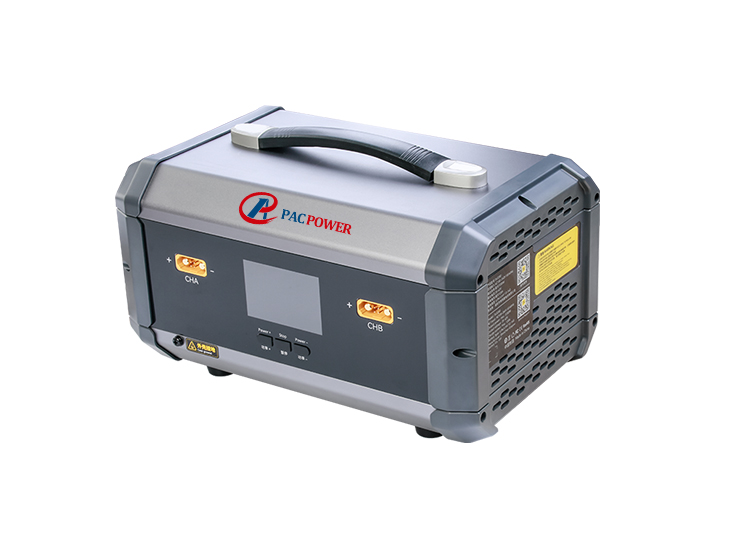

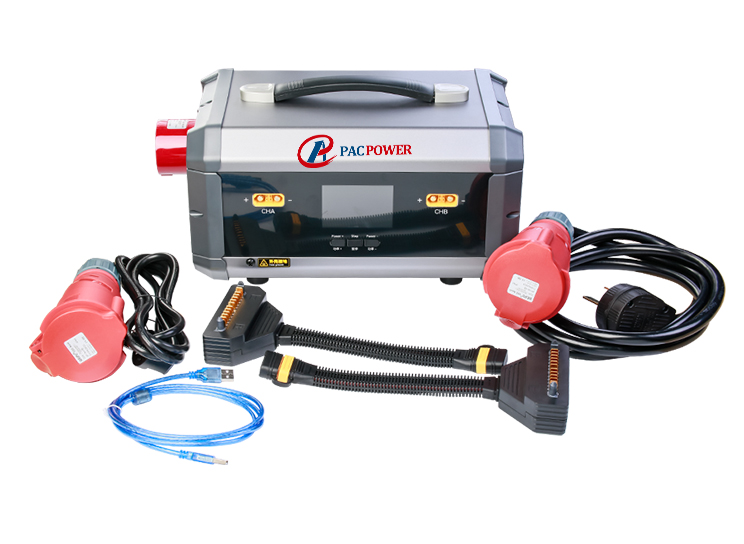

TA7200Pro Dual-Channel Smart Charger
When connected to a smart battery, the TA7200 Pro charger automatically recognizes battery information without the need for manual parameter settings. Equipped with comprehensive protection features including over-temperature, over-current, over-charge, and disconnection protection, it ensures safe and reliable charging. Throughout the charging process, the charger monitors battery status in real time and automatically stops once the battery is fully charged.
TA7200 Pro 12S/14S Smart Drone Battery Charger – Product Features:
120A fast charging
Ultra-high power output
Plug-and-charge operation
Intelligent power management
Ultimate user convenience
