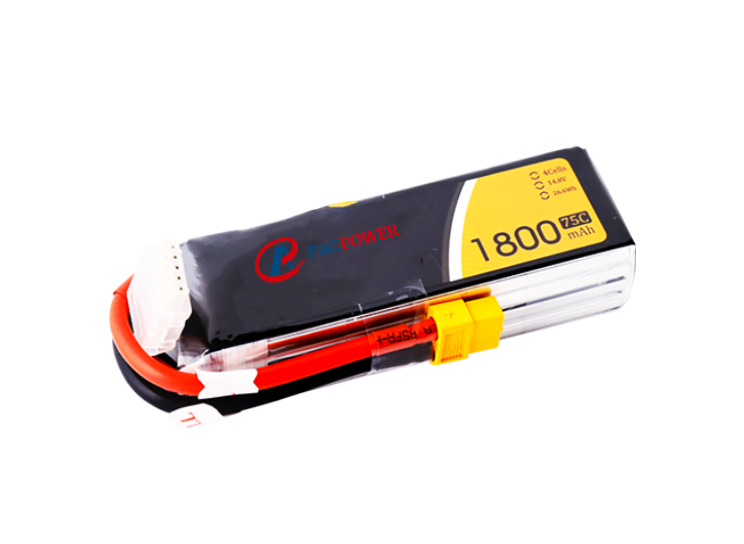

The 4S 75C FPV Drone battery pack 14.8v 1800mAh lithium polymer for racing drone?is specifically engineered for professional-grade FPV drone racing. This standard series of FPV drone batteries offers an extended cycle life, a variety of size options, and outstanding performance. In addition, the battery packs feature a high discharge rate (45C/75C), delivering powerful bursts of energy ideal for racing, recreational, educational, and commercial applications. They are highly regarded for both their performance and affordability.
enquiry4S 75C FPV Drone battery pack 14.8v 1800mAh lithium polymer for racing drone
No. | Item | General Parameter | Remark |
1.1 | Description | 4S 75C FPV Drone battery pack 14.8v 1800mAh lithium polymer for racing drone | ? |
1.2 | Cell Model | 3.7v 1800mAh | |
1.3 | Typical Capacity | 1800Ah | |
1.4 | Typical Voltage | 14.8V | |
1.5 | End of Charge Voltage | 16.8V | |
1.6 | Charge Current | 5C | |
1.7 | Charging time | 20 minutes | |
1.8 | End discharge Voltage? | 12V | |
1.9 | Max continuous charge current | 9A | |
2.0 | Maximum Continuous Discharging Current | 75C | |
2.1 | Maximum pulse discharge current? | 300C | |
2.2 | Over-Current Discharge Protection | YES | |
2.3 | Weight | 206g | ? |
2.4 | Dimension | 25*35.5*106mm | |
2.5 | Cycle life | ≥300 times | |
2.6 | Operation Temperature Range | Charge 0~50 ℃, Discharge -20~60 ℃ | ? |
Classic Series FPV Battery Product Features
● Lightweight design
● High discharge rate
● Low internal resistance (IR)
● Extended cycle life
● Stable discharge voltage
● Wide range of sizes available
● Ideal for FPV racing, cinematic drones, freestyle drones, and aircraft
Classic Series FPV Battery Applications
● Compatible with 1.6-2.5 inch FPV drones
● Suitable for 3-3.5 inch FPV drones
● Designed for 4 inch FPV drones
● Ideal for 5 inch FPV drones
● Optimized for 7-7.5 inch FPV drones
● Recommended for 8-10 inch FPV drones
As a globally leading lithium battery manufacturer, PAC provides professional customized solutions for high-discharge (up to 160C) FPV batteries to meet your specific application needs.
● Battery Types: High-discharge batteries, high-voltage batteries, low-temperature and high-temperature batteries
● Battery Capacity: Customizable without restrictions
● Cycle Life: Up to 600 cycles
● Operating Temperature: -40℃ to 60℃ / -50℃ to 50℃
● Battery Weight: Customized based on requirements
● Battery Dimensions: Customized based on requirements
● Connectors, Labels, and Packaging: Customized based on requirements
