    Factory Price Ebike Battery, 36V 11Ah Lithium Ion Battery Pack

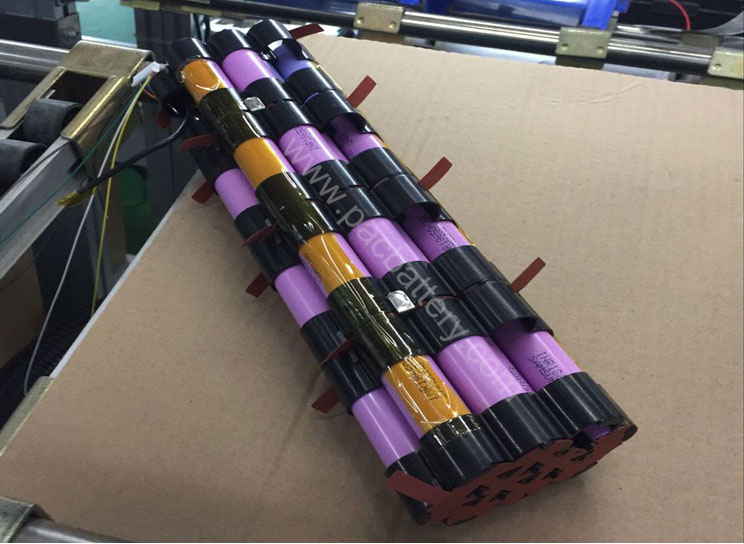

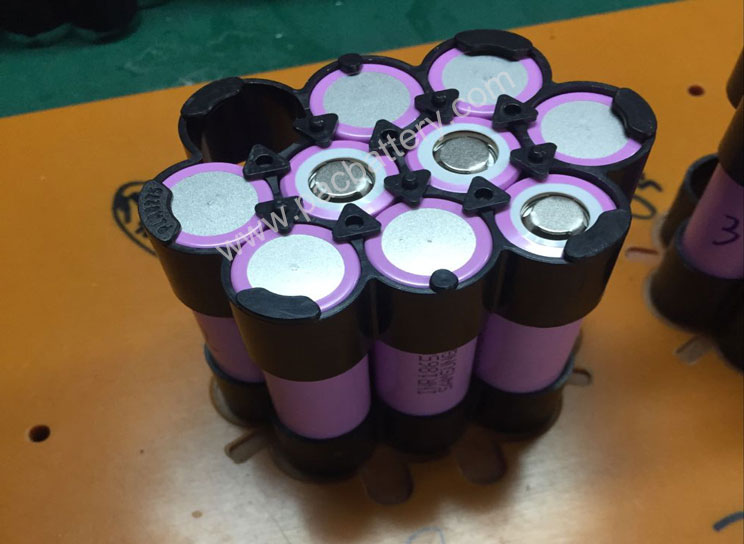

    We have different options with different voltage and capacity by using different capacity cells. We could also make customized e-bike battery by using of Panasonic, LG, Samsung 18650 cell. The battery packs are with stable quality, high power, high discharge current.

    enquiry
    • Specifications
    • E-Bike Battery Features
    • One-Stop Services
    • Lithium Battery Application


    Factory Price Ebike Battery, 36V 11Ah Lithium Ion Battery Pack


    Nominal voltage: 36V

    Nominal capacity: 11Ah (by standard charge and discharge)
    Configuration: 10S4P
    Internal resistance: ≤210mΩ
    Operating voltage: 36-42V
    Standard charge current: 2A (23-28°C)
    Standard discharge current: 5A (23-28°C)
    Maximum charge current: 5A
    Maximum continuous discharge current: 18A
    Standard charge: constant current, constant voltage (CC/CV) 2A until 42V, end of current: 0.05C
    Standard discharge: constant current (CC) 5A until 30V
    Operating temperature range: 0 – 45℃ for charge
    Storage temperature range: -20 – 60℃ for discharge
    Storage temperature range:
    1 year: 20-25℃
    6 months: -20-45℃
    3 months: 20-60℃
    Humidity range: 45-85% RH (operating/storage)
    Weight: 2.5kg (approximately)
    Battery capacity as shipment: >60%
    Lifespan: >800 times (80% capacity remains)
    Suitable power of motor: up to 400W (300W suggested)

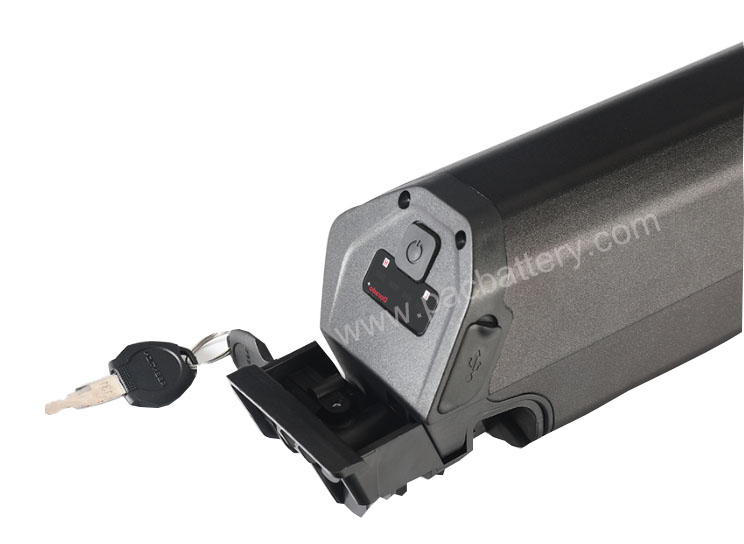

    * New slim style case battery with power button

    * Convenient charge port support 4A faster charge
    * Waterproof and solid plastic case
    * Lighted battery LED power indicator
    * Lock with keys securely locks the mount on bike frame
    * Stable voltage platform ensures continuous and stable power output for E-bikes.
    * Small size and light weight design, which is the E-bike battery trend.
    * Safe and reliable Battery Management System promises long battery cycle life.
    * Green and environmentally friendly.


    • Lithium polymer battery cell manufacturing, with 1000+ existing cell models.

    • Cylindrical Lithium ion battery cell manufacturing, with model of 18650, 26650, 14500, 32650, 38120.
    • Battery assembly with International branded 18650 cells, like Samsung, LG, • Panasonic, Sony, etc..
    • Battery management system (BMS/PCM) design, production is done in-house.
    • Battery Plastic housing tooling, injection is done in-house


    1.Light: headlamp, emergency light, solar flashlight, searchlight, lanten, bicycle light, LED light, military

    flashlight, high-end flashlight, high power flashlight, bright flashlight.
    2.Outdoor sports products: camping light, mountain bike light, solar emergency light, self-defense flashlight,
    3.Consumer electronics: MPS, Tablet PC. laptop, Bluetooth earphone, power bank, portable DVD player,
    speaker, microphone, sound equipment, audio, Digital camera
    4.Home appliances products: electric mop, electric vacuum cleaner, electric children toys, electric shoes,
    electric blanket.
    5.Medical devices
    6.Instruments and meters: water meter, gas meter.
    7.Electric transportation vehicles: electric bike, electric car, e-scooter, electric motor, electric trolley, electric cart.
    8.Power tools: electric drill, mower
    9.UPS, backup energy, storage energy.

    We warmly welcome OEM design inquiry! We could make customized battery pack specially for you!
