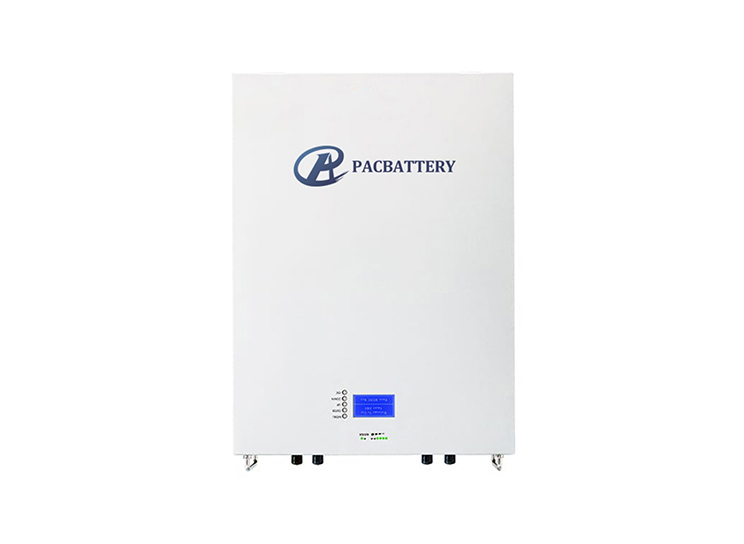

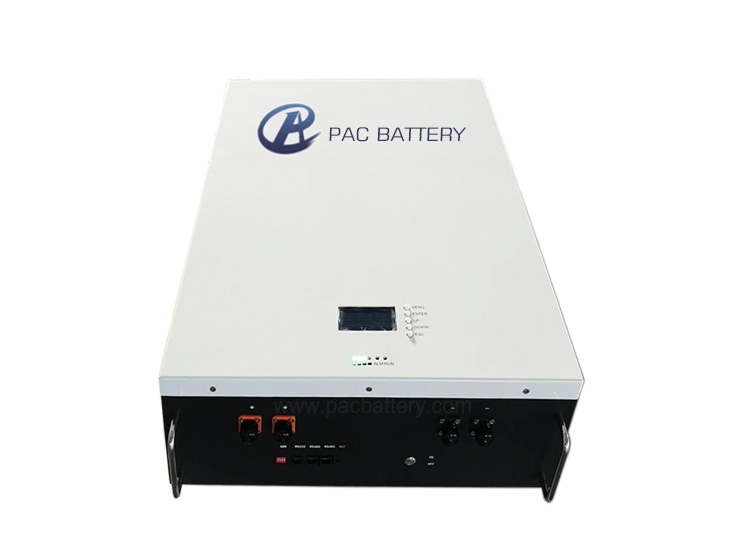

  • 48V 10kWh smart Home solar LiFePO4 battery pack power storage wall mounted for hybrid solar system

    Commercial Battery Storage, Home Storage Battery, Solar Battery Wall

    Solar wall 10kWh energy storage system, using top quality EV grade LiFePO4 batteries, widely used for:

    * Home solar energy storage system, hospital, school, office space...
    * Solar/wind energy storage system
    * Solar battery backup
    * On grid/off grid battery storage system

    The battery is compatible with many inverter brands, such as SMA, Solark, Schneider, Solis, Sofar, Sungrouw, Solax, Goodwe, Growatt, Victron, Deye, InfiniSolar, etc.




    • Specifications
    • LiFePO4 Battery Advantages
    • Home storage battery features
    • Solar wall battery Applications

    48V 10kWh smart Home solar LiFePO4 battery pack power storage wall mounted for hybrid solar system


    Item General Parameter
    1.1 Description 48V 10kWh smart Home solar LiFePO4 battery pack power storage wall mounted for hybrid solar system
    1.2 Battery Type Top quality EV grade LiFePO4 cells
    1.3 Typical Capacity 200Ah
    1.4 Typical Voltage 48V
    1.5 Typical power 10kWh
    1.6 Inverter compatible with inverter brand Sol-ark, SMA, Deye, Solax, Goodwe, Sungrow, Lantruan, Sofarsolar, GMDE
    1.7 Load power 5kva
    1.8 Charging voltage 54.75V
    1.9 End voltage 37.5~42V
    2.0 Standard charge current 20A
    2.1 Limiting current 20A
    2.2 Max. continuous charge current 100A
    2.3 Standard discharge current 20A
    2.4 Max. continuous discharge current 100A
    2.5 Cycle life >6000 times
    2.6 Weight 85Kg
    2.7 Dimension 650×480×190mm
    2.8 Operation Temperature Range Charge 0~45℃, Discharge -20~55℃



    Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
    Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
    Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
    Wider Temperature Range: -20 C~60 C.
    Superior Safety: Lithium Iron Phosphate chemistry eliminates
    the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
    Increased Flexibility: Modular design enables deployment of up to four batteries in series and up to ten batteries in parallel.

    Features of 48v 10kwh solar wall battery:

    • Advanced Internal modular structure design
    • Long cycle life - product life expectancy of 15-20 years
    • Expandable storage capacity as power needs increase.
    • Intelligent integrated BMS and Proprietary architecture
    • Fashion Finger touch LCD/Stable LCD with botton(optional)

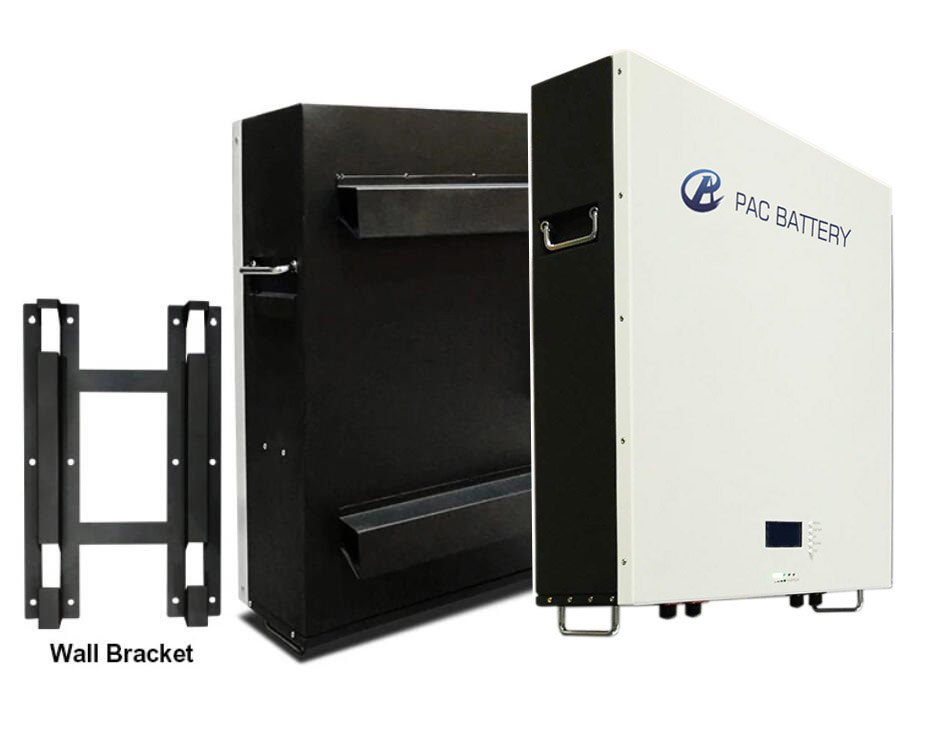

    • Convenient mounted on wall design

    1. Energy Storage
       --Solar-Wind Power System / City Grid (On/Off) / Community and Family
    2.Back-up System and UPS
       --Telecom Base / CATV system / Computer Server Center / Medical Instrument / Military Equipment
